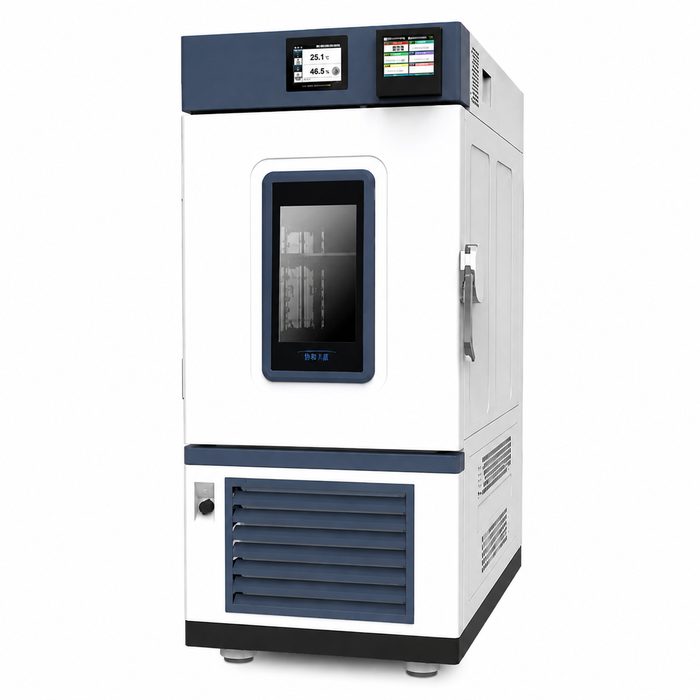

Jeio Tech | Temperature and Humidity Chamber Basic Type | TH3 E Test Chamber with Advanced Climate Control and 21 CFR Part 11 Compliance
The Jeio Tech | Temperature and Humidity Chamber is a cost-effective solution designed for laboratories, research facilities, and industrial testing environments that require reliable climate control for limited testing conditions.
Available through Alto Med Supply, this advanced chamber delivers stable temperature and humidity performance while helping reduce operational costs and energy consumption.

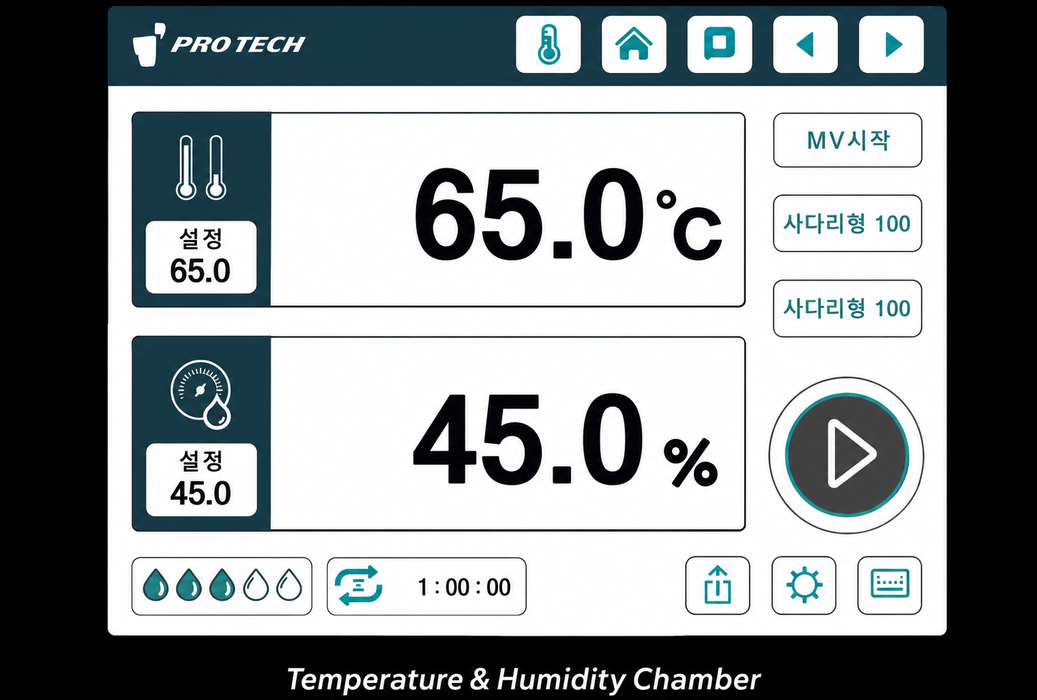

Designed for user-friendly operation, the chamber features a 5.6-inch color touch display controller with real-time graph monitoring for easy tracking of testing conditions and system performance.
Its simplified water line and electrical circuit design helps minimize faults and improve long-term reliability.
The built-in water level monitoring system ensures timely replenishment, supporting uninterrupted operation during humidity testing.
The chamber is engineered with excellent thermal insulation and a double-sealed door structure to maintain consistent temperature and humidity reproducibility, even during repeated testing cycles.

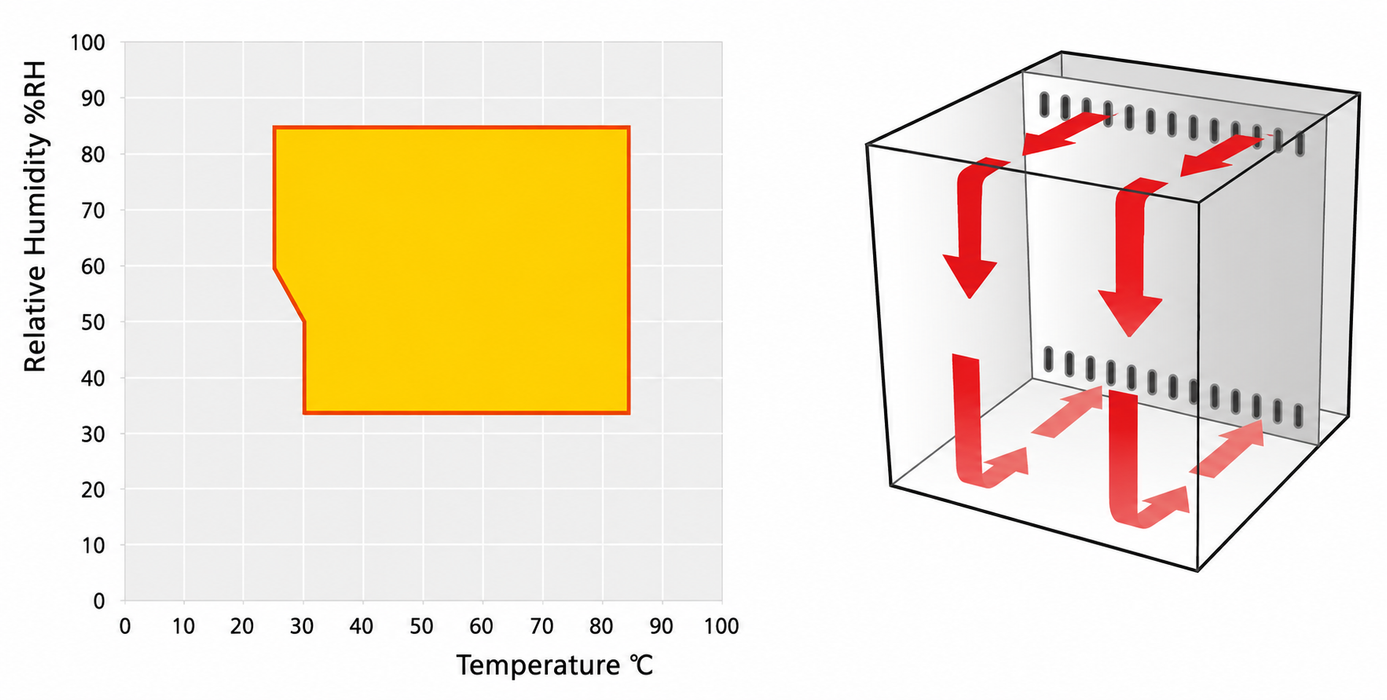

Optimized airflow circulation provides stable environmental conditions throughout the chamber, while the energy-saving system improves testing efficiency and lowers power consumption.
For enhanced safety, the chamber includes advanced over-temperature protection systems, backup over-temperature limiters, independent precision sensors, and automatic shut-off features for abnormal operating conditions.
Additional protections include low water level alarms, door-open warnings, overcurrent and short-circuit protection, compressor overload protection, and refrigerant pressure monitoring.
The exterior surface temperature is maintained below 60°C for safer operation in laboratory environments.

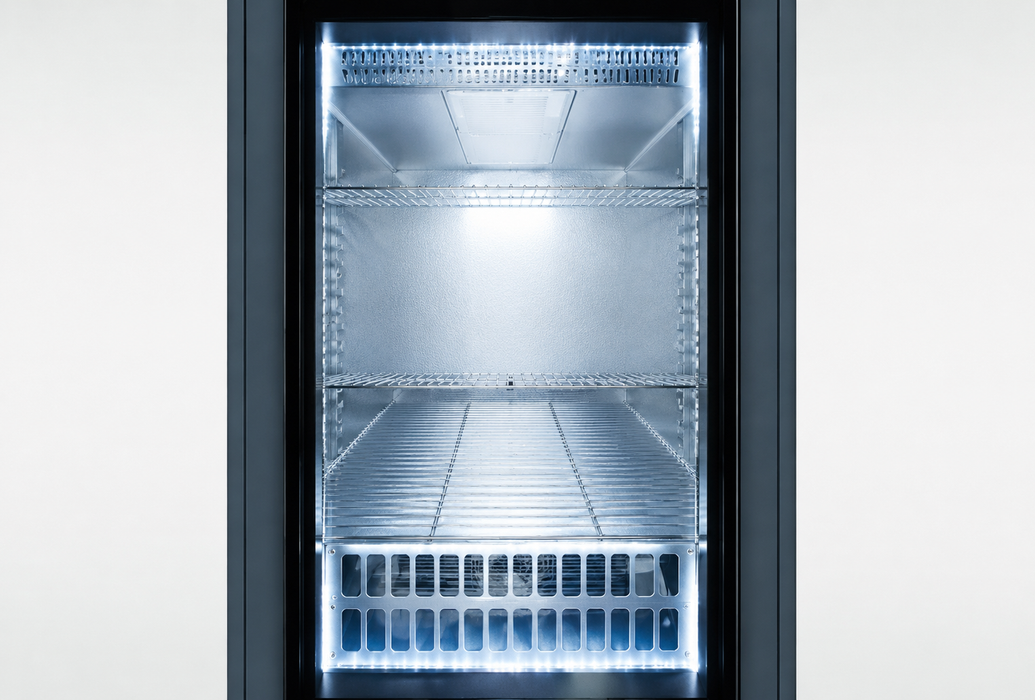

This temperature and humidity chamber also offers convenient maintenance and observation features, including a tempered glass viewing door with built-in heating wire and LED lighting for easy sample monitoring.
The removable condenser grill simplifies cleaning and refrigeration maintenance, while the efficient water recirculation system reduces the need for frequent refilling during long-term humidity testing.
An optional direct water supply system is also available for continuous operation.
For advanced laboratory management, the chamber supports RS-485 communication, allowing up to 32 devices to connect to a PC simultaneously for centralized control and data processing.
The multifunction control system features temperature and humidity auto-tuning, temperature calibration, and a 9-zone PID control system for precise stability.

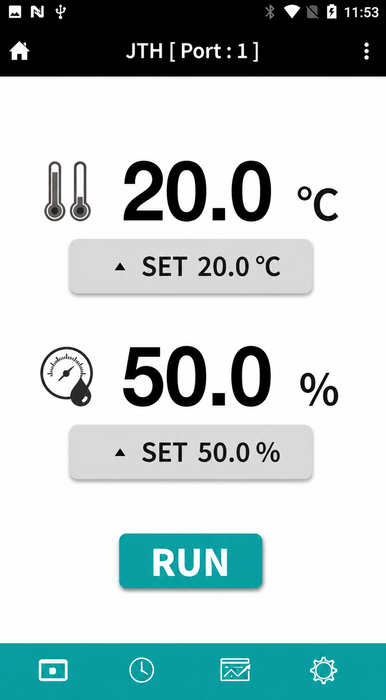

Optional LC Green Box integration enables remote mobile monitoring through the LC Connected app, while optional 21 CFR Part 11 compliant LC Data Keeper software supports GMP audit requirements and secure data management.
The programmable control system supports up to 100 patterns, 2,000 total segments, repeat functions, and programmable process times up to 99 hours and 59 minutes per segment, making it ideal for complex environmental testing applications.
Key Features
5.6-Inch Touch Display: Color touchscreen with real-time monitoring.
Stable Climate Control: Precise temperature and humidity management.
Double-Sealed Door: Improves chamber stability and sealing.
Energy-Efficient Design: Reduces power consumption.
Water Level Alert: Indicates when refilling is needed.
Overheat Protection: Dual safety system prevents overheating.
Automatic Safety Shutoff: Stops operation during faults.
Compressor Protection: Guards against overload damage.
Viewing Window: Heated glass door with LED lighting.
Water Recirculation: Reduces water usage during testing.
Direct Water Supply: Optional continuous water connection.
Easy Maintenance: Removable condenser grill for cleaning.
21 CFR Part 11 Support: Optional GMP-compliant data management.
Multi-Chamber Control: Connects up to 32 chambers.
9-Zone PID Control: Enhances temperature and humidity stability.
Remote Monitoring: Optional mobile app access.
Programmable Operation: Supports advanced test cycles.
Specifications
Model
TH3-E-200
TH3-E-400
Interior Dimensions
Chamber Volume (L / cu ft)
201 / 7.1
398 / 14.1
Width (mm / inch)
500 / 19.7
600 / 23.6
Depth (mm / inch)
670 / 26.4
830 / 32.7
Height (mm / inch)
600 / 23.6
800 / 31.5
Quantity of Shelves (Standard / Max.)
2 / 9
2 / 10
Distance Between Shelves (mm / inch)
40 / 1.6
40 / 1.6
Max. Load Per Shelf (kg / lbs.)
20 / 44.1
25 / 55.1
Permitted Total Load (kg / lbs.)
50 / 110.2
60 / 132.3
Cable Port (Ø, mm / inch)
50 / 2.0
65 / 2.6
Water Tank Capacity (L / cu ft)
20 / 0.7
20 / 0.7
Weight (kg / lbs.)
200 / 440.9
270 / 595.2
Temperature Data
Range Without Humidity (°C / °F)
0 to 90 / 32 to 194
0 to 90 / 32 to 194
Fluctuation (±°C / °F)
0.5 / 0.9
0.5 / 0.9
Variation (±°C / °F)
0.8 / 1.44
0.8 / 1.44
Heating Time (0°C to 90°C) (min)
80
80
Cooling Time (90°C to 0°C) (min)
90
90
Humidity Data
Range (%RH)
35 to 85
35 to 85
Fluctuation (±%RH)
1
1
Variation (±%RH)
3
3
Electrical Data and Ordering Information
Electrical Requirements (AC230V, 1ph, 60Hz)
15A
16A
Cat. No.
AAH841102K
AAH841112K
Electrical Requirements (AC230V, 1ph, 50Hz)
15A
16A
Cat. No.
AAH841102K
AAH841112K
Product Manual
User manual for Jeio Tech Temperature and Humidity Chamber Basic Type can be found here.
