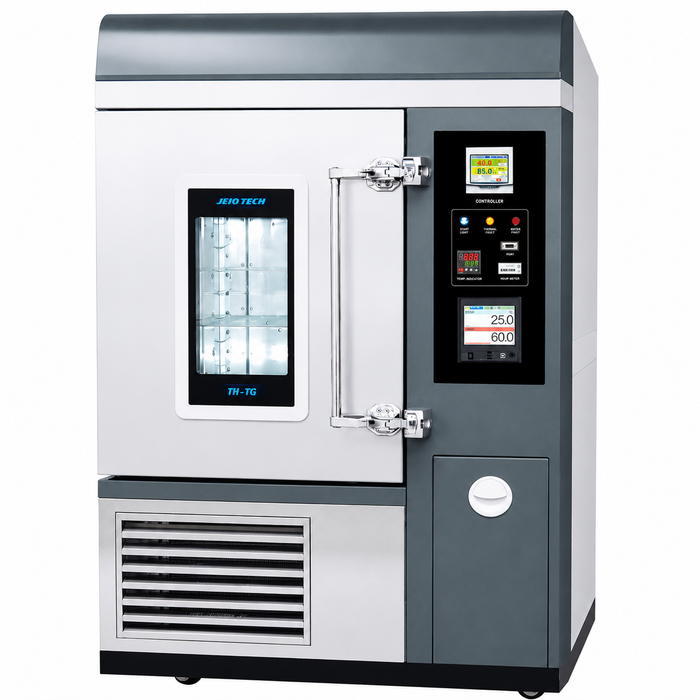

Jeio Tech | Temperature and Humidity Chamber General Type | Economy Environmental Test Chamber for ICH Stability Testing
The Jeio Tech Temperature and Humidity Chamber General, available at Alto Med Supply, is designed for reliable temperature and humidity testing in laboratories, research facilities, pharmaceutical environments, and industrial applications.
Built to support stability testing in accordance with ICH Guidelines Q1A (R2), this environmental test chamber delivers precise control for long-term testing processes.
It offers a temperature range of -5°C to 100°C and humidity control from 10% to 95% RH or 20% to 95% RH, depending on the model configuration.
This laboratory environmental chamber features advanced microprocessor PID control with temperature calibration and automatic tuning for stable and accurate performance.
Its optimized humidification system supports consistent low and high temperature and humidity conditions, making it ideal for long-duration testing.

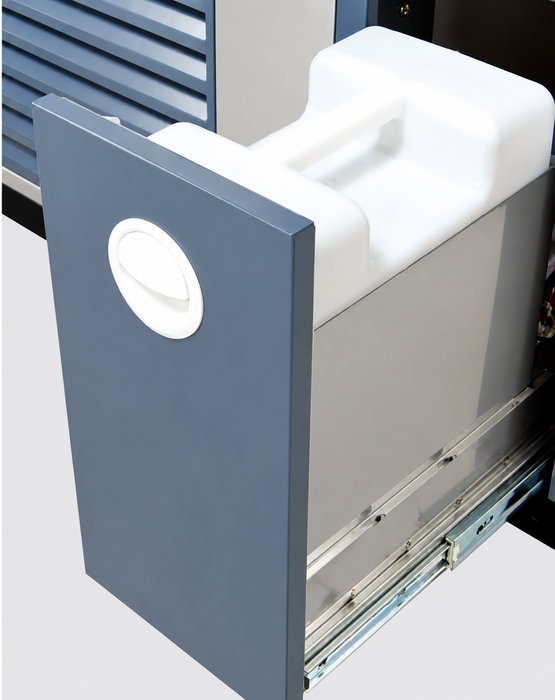

The built-in water recycling system helps reduce water consumption for extended operation, while the airtight door design with heat-resistant silicone packing minimizes heat loss and improves energy efficiency.
For added durability, the chamber is constructed with a corrosion-resistant stainless steel interior and an electrically polished humidification tank.
The insulated structure keeps the exterior surface temperature below 60°C, even during high-temperature operation.
Safety features include a built-in key door lock, automatic overheat shutoff, low water level alarm, leakage breaker, overcurrent protection, and open door alarm for secure daily operation.

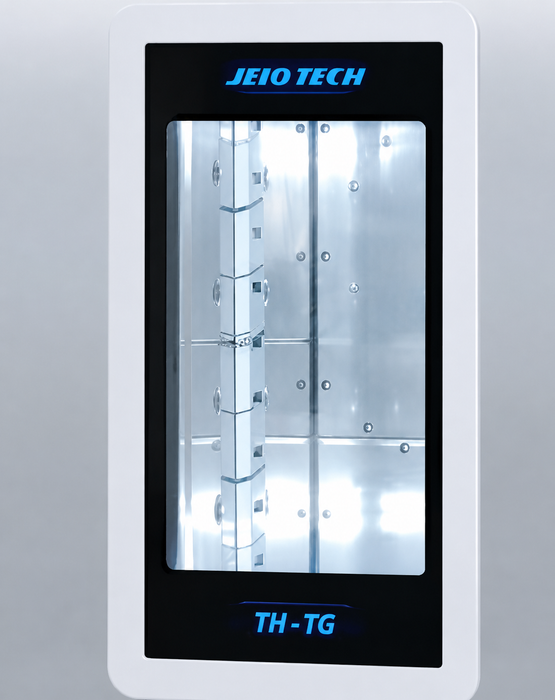

Users can easily monitor samples through the tempered glass viewing door with built-in heating wire and energy-efficient LED lighting.
Optional inner glass doors provide an even wider viewing area during testing. Convenient cable ports allow external probes and wires to pass through the chamber without affecting internal conditions.

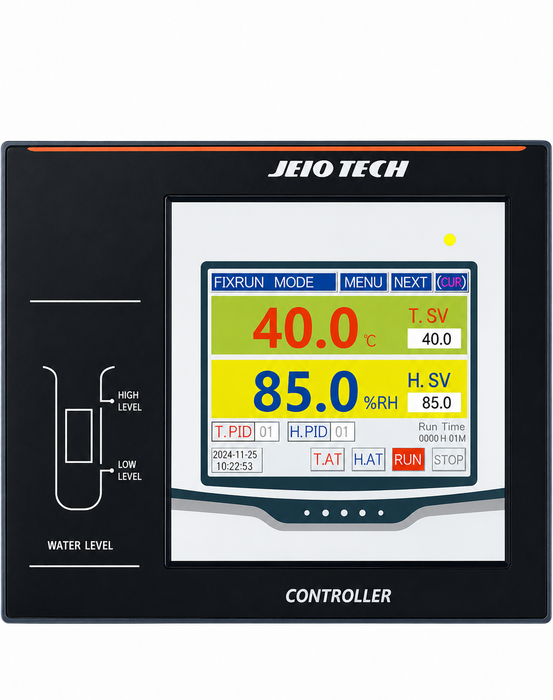

This environmental chamber is equipped with a user-friendly touch-type LCD controller that clearly displays set and current temperatures.
Key Features
ICH Compliance: Supports ICH Q1A (R2) stability testing.
Wide Temperature Range: Operates from -5°C to 100°C.
Data Storage: Saves operating records and settings.
Flexible Timing: Supports extended test programs.
Specifications
Specification
General Specifications
Controller
PID Control (LCD Type)
Temperature Range

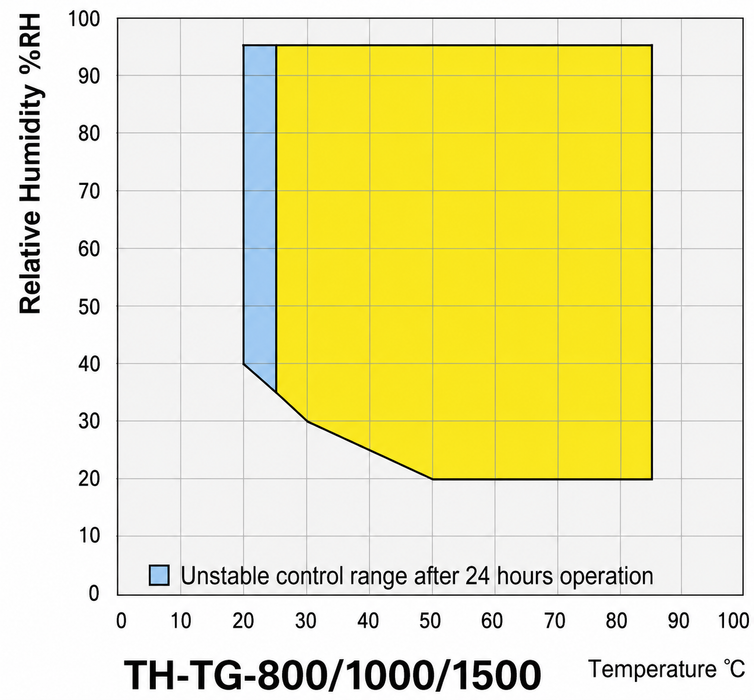

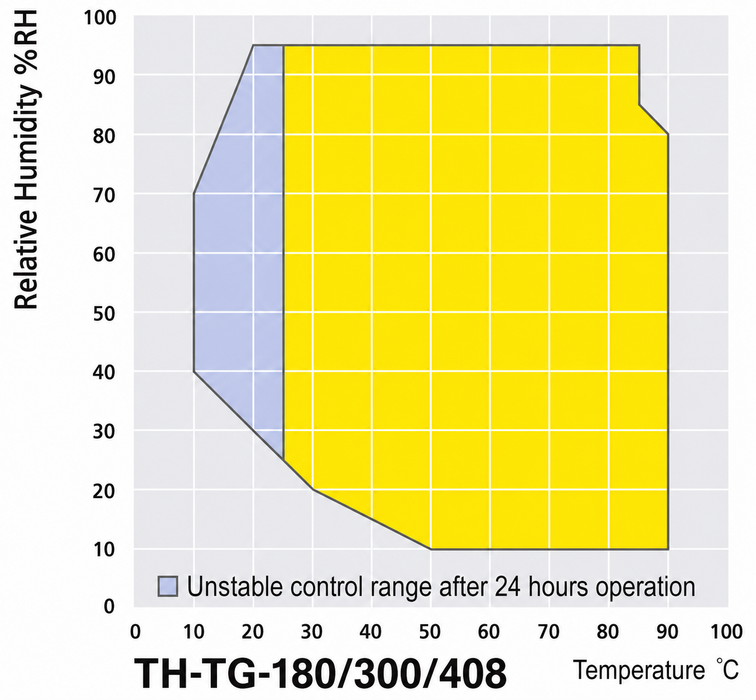

Without Humidity: -5°C to 100°C (23°F to 212°F) With Humidity: 10°C to 90°C (TH-TG-180/300/408) With Humidity: 20°C to 90°C (TH-TG-800/1000/1500)
Temperature Fluctuation
±0.3°C (±0.55°F)
Temperature Variation
±0.5°C (±0.9°F)
Humidity Fluctuation
±2% RH
Humidity Variation
±3% RH
Refrigeration System
Air-Cooled
Refrigerant
R-507A
Water Quality
pH 6.2–7.2, Electrical Conductivity ≤20 μS/cm
Viewing Window
200 × 330 mm (7.9 × 13 in)
Cable Port
Standard Ø50 mm (2"), Optional Ø50 mm or Ø80 mm (3.2")
Interface Port
RS-232C Standard (RS-485 Optional)
Model
TH-TG-180
TH-TG-300
TH-TG-408
TH-TG-800
TH-TG-1000
TH-TG-1500
Chamber Volume (L / cu ft)
180 / 6.4
314 / 11.1
419 / 14.8
770 / 27.2
997 / 35.2
1540 / 54.4
Heating Time
50 min
55 min
Cooling Time
120 min
145 min
Humidity Range (%RH)
10 – 95
25 – 95
Water Tank Capacity (L)
15
30
Wire Shelves (Std. / Max.)
2 / 7
2 / 8
2 / 8
2 / 17
2 / 17
2 / 17
Max. Shelf Load (kg)
20
25
25
40
40
40
Total Load Capacity (kg)
50
65
65
100
100
100
Interior Dimensions (W × D × H mm)
500 × 600 × 600
748 × 600 × 700
748 × 800 × 700
748 × 920 × 1120
748 × 1190 × 1120
1100 × 1000 × 1400
Exterior Dimensions (W × D × H mm)
952 × 907 × 1503
1201 × 907 × 1525
1201 × 1107 × 1525
1200 × 1228 × 1993
1201 × 1498 × 1993
1554 × 1872 × 1935
Net Weight (kg)
220
250
280
360
410
480
Electrical Requirements
11.8A
13.9A
13.9A
14.9A
14.9A
24A
Catalog No.
AAHC2005K
AAHC2015K
AAHC2025K
AAHC2035K
AAHC2045K
AAHC2055K
Product Manual
User manual for Jeio Tech Temperature and Humidity Chamber General Type can be found here.
