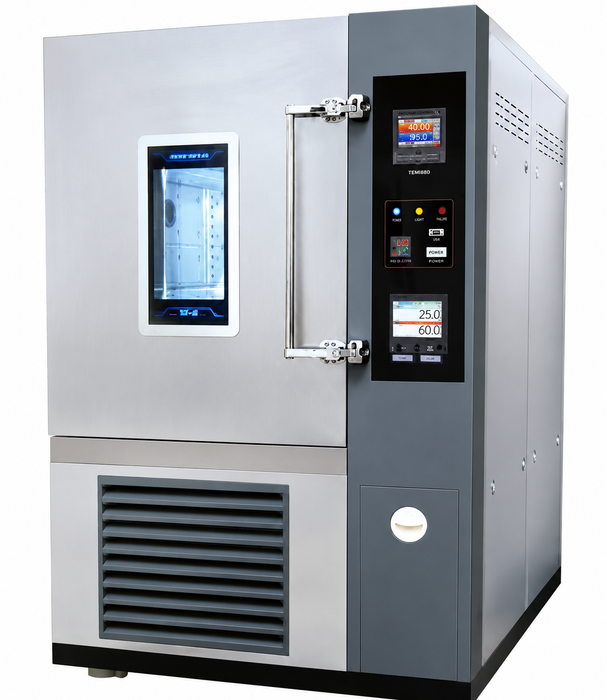

Jeio Tech | Temperature and Humidity Chambers Low Temp TH G Series | Standard Environmental Test Chamber with Advanced LCD Controller
The Jeio Tech Temperature and Humidity Chambers Low Temp TH-G Series, available from Alto Med Supply.
Designed for reliable temperature and humidity testing in laboratories, research facilities, pharmaceutical environments, and industrial applications.
Built for long-term environmental testing, this chamber features a highly interactive LCD controller that supports advanced programmable test cycles and accurate environmental control.
This environmental test chamber uses advanced microprocessor PID control with automatic tuning and temperature calibration to deliver stable and precise chamber conditions.
Its optimized humidification system improves low and high temperature humidity performance during extended operation.
The built-in water recycling and filtering system helps reduce water consumption while supporting long-term testing applications.
For improved efficiency, the chamber features an airtight door design with heat-resistant silicone packing and dual door latches to reduce heat leakage and maintain stable internal conditions.
The optimized insulation system helps improve energy efficiency while keeping the external surface temperature below 60°C during high-temperature operation.

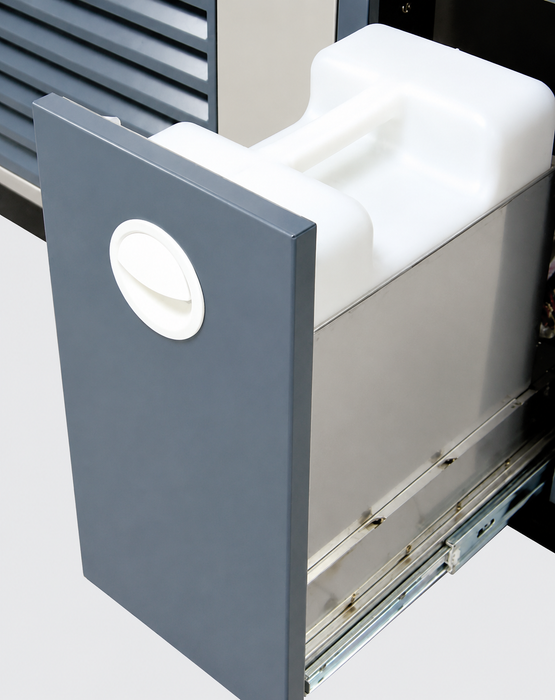

A front-access water tank and portable water container simplify water refilling, while an optional direct water supply system supports continuous long-term operation.

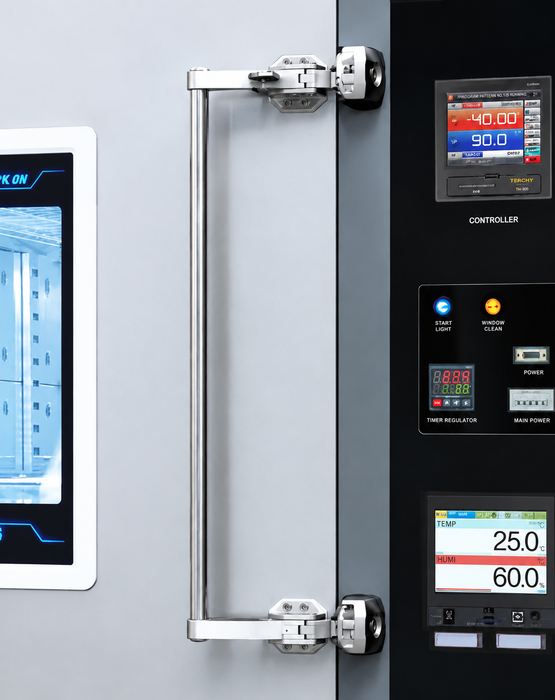

The tempered glass viewing window with built-in heating wire and LED lighting allows clear sample observation during testing.
Optional inner glass doors provide a wider viewing area, and standard cable ports support external probes and monitoring devices. Built-in casters allow easy installation and chamber relocation.
The Jeio Tech Temperature and Humidity Chambers Low Temp combines reliable climate control, advanced safety systems, and flexible programmable operation for demanding laboratory and environmental testing applications.
Key Features
Environmental Testing: Precise temperature and humidity control.
PID Control: Delivers accurate and stable performance.
Water Recycling System: Reduces water consumption.
Airtight Chamber: Minimizes heat loss and improves stability.
Energy-Efficient Design: Lowers power consumption.
Safety Protection: Includes overheat, overcurrent, and water alarms.
Large Capacity: Available in sizes up to 1500L.
Stainless Steel Interior: Durable and corrosion-resistant.
Direct Water Supply: Optional continuous water connection.
Viewing Window: Heated glass for sample observation.
LED Lighting: Bright chamber illumination.
Cable Port: Supports external probes and sensors.
Built-In Casters: Easy to move and install.

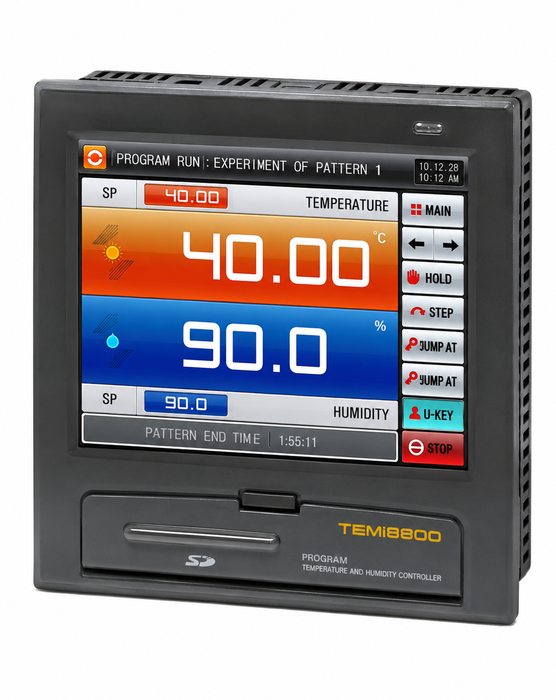

5.7-Inch Touch LCD: Real-time monitoring and control.
Graph Monitoring: Displays testing progress.
SD Card Storage: Saves and transfers data easily.
Programmable Operation: Automates testing cycles.

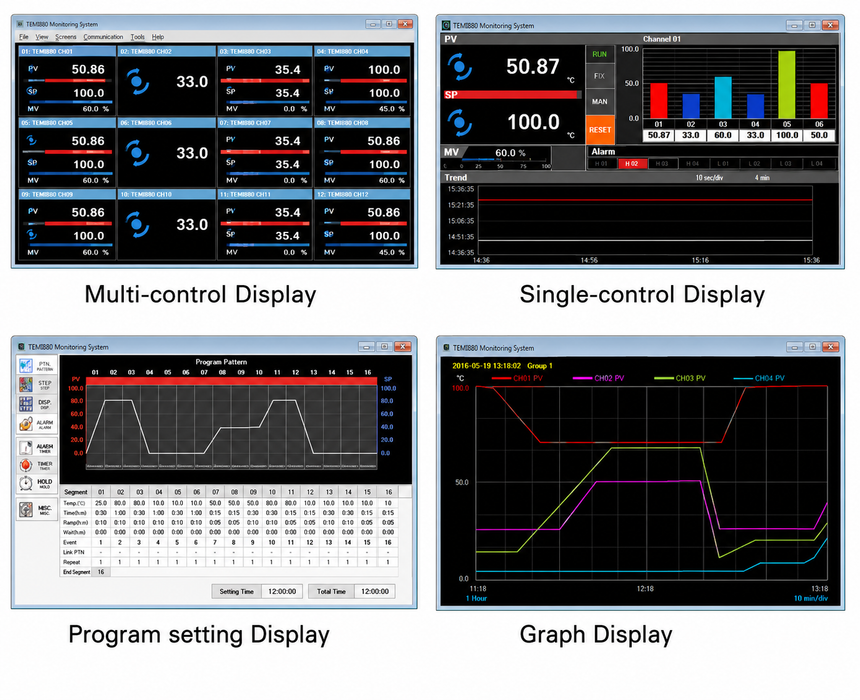

Remote Monitoring: Optional monitoring for multiple chambers.
Programmable Touch Screen Controller (5.7" Color Monitor)
Temperature Range
-40°C to 100°C (-40°F to 212°F) @ 60Hz -35°C to 100°C (-31°F to 212°F) @ 50Hz
Temperature Fluctuation
±0.3°C (±0.54°F)
Temperature Variation
±0.5°C (±0.9°F)
Humidity Range
25% to 95% RH
Humidity Variation
±3% RH
Refrigeration System
Mechanical Dual-Stage Refrigerator System
Refrigerant
R-507
Water Supply Capacity
15L Cartridge Type
Water Quality
pH 6.2–7.2 / Conductivity ≤20 μS/cm
Shelf Distance
40 mm (1.6 in)
Max. Shelf Load
40 kg (88.2 lbs.)
Total Load Capacity
100 kg (220.5 lbs.)
Viewing Window
270 × 330 mm (10.6 × 13 in)
Cable Port
Ø50 mm Standard (Optional Ø50 mm or Ø80 mm)
Interface Port
RS-232C Standard (RS-485 Optional)
Model
TH-G-800
TH-G-1000
TH-G-1500
Chamber Volume (L / cu ft)
800 / 28.3
1000 / 35.3
1450 / 57.1
Heating Time
70 min
70 min
90 min
Cooling Time
75 min
75 min
90 min
Humidity Fluctuation
±1.0% RH
±1.0% RH
±2.0% RH
Wire Shelves (Std. / Max.)
2 / 14
2 / 14
3 / 18
Interior Dimensions (W × D × H mm)
1000 × 800 × 1000
1000 × 1000 × 1000
1000 × 1000 × 1450
Exterior Dimensions (W × D × H mm)
1503 × 1319 × 1968
1503 × 1519 × 1968
1503 × 2065 × 2007
Net Weight (kg)
620
680
860
Electrical Requirements
12.2 A
12.2 A
15.5 A
Catalog No.
AAH80048K
AAH80058K
AAH80078K
Catalog No. (EU Only)
AAH80040K
AAH80050K
AAH80070K
Permissible environmental conditions: temperature (18 to 30℃) and relative humidity (up to 85%). * All specifications are under ambient temperature 20℃ (68℉), No load. * FDA establishment registered company. FDA listed products.
