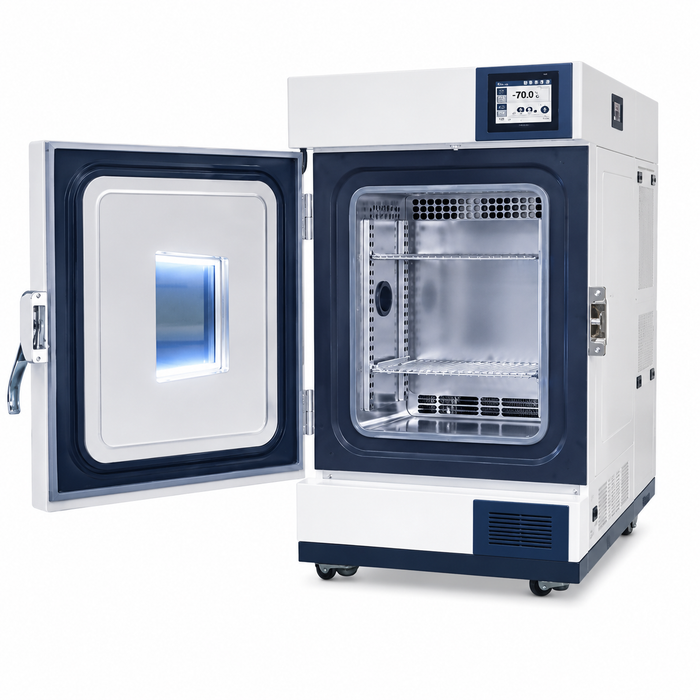

Jeio Tech | Temperature and Humidity Chamber Tabletop Type | Compact Temperature and Humidity Test Chamber With PID Control and Touch Display
At Alto Med Supply, we offer advanced Jeio Tech Temperature and Humidity Chamber Tabletop Type designed for reliable environmental testing, precise control, and space-saving laboratory operation.
These small-format environmental test chambers are ideal for research, quality control, stability testing, and temperature and humidity simulation applications.
The TH3 series is available in multiple configurations to match different testing requirements, including the TH3-KE with a temperature range of -40°C to 100°C, the TH3-ME with a range of -20°C to 100°C, and the TH3-PE with a range of 0°C to 100°C.
This flexible model selection allows laboratories to choose the most suitable chamber for their testing environment and application needs.
Designed with optimized structural engineering, these compact temperature and humidity chambers deliver proven reproducibility and reliable environmental control while saving valuable laboratory space.
The advanced external humidification system provides stable humidity performance and simplifies chamber cleaning and maintenance.
Excellent thermal insulation and a double-sealed airtight door design help maintain consistent temperature and humidity conditions, even during repeated long-term testing.
The user-friendly 5.6-inch color touch display controller makes operation simple and efficient. Users can monitor chamber status, operating conditions, and performance graphs directly from the front panel.
The built-in water level monitoring system helps ensure timely water refilling, while the efficient water recirculation system reduces refill frequency during extended high-humidity testing.
A tempered glass viewing door with integrated heating wire and LED lighting allows easy sample observation without interrupting testing conditions.
Additional convenience features include LED status indicators visible from a distance, a standard cable port with silicone plug for connecting external equipment, and an easily removable condenser grill for simplified maintenance and refrigeration efficiency.
Optional accessories such as a dedicated mobile stand and recorder for maintaining test records further improve usability and laboratory workflow.
For advanced data management and monitoring, these environmental chambers support program storage, data backup, and documentation functions.
Standard RS-232 connectivity and optional RS-485 communication allow simultaneous control and data processing for up to 32 connected devices.
The advanced control system also features automatic temperature and humidity tuning, temperature calibration, and a 9-zone PID control system for improved stability and precision.
Key Features
Compact Design: Saves laboratory space.
Precise Climate Control: Stable temperature and humidity conditions.
Multiple Temperature Options: Models available from 0°C to -40°C.
Airtight Chamber: Improves testing stability.
5.6-Inch Touch Display: Easy monitoring and control.
Cable Port: Supports external devices and sensors.
Easy Maintenance: Removable condenser grill.
Program Storage: Saves settings and test data.
RS-232/RS-485 Connectivity: Supports PC integration.
9-Zone PID Control: Enhances accuracy and stability.
Remote Monitoring: Optional mobile access.
Data Export: Supports Excel and text files.
Optional Accessories: Mobile stand and recorder.
Specifications
General Specifications
Temperature Range
0°C to 100°C (32°F to 212°F)
Temperature Fluctuation
±0.3°C (±0.54°F)
Temperature Variation
±0.5°C (±0.9°F)
Heating Time
40 min (0°C to 90°C)
Cooling Time
35 min (90°C to 0°C)
Humidity Range
30% to 95% RH
Humidity Fluctuation
±1% RH
Humidity Variation
±3% RH
Shelf Distance
20 mm (0.8 in)
Max. Shelf Load
25 kg (55.1 lbs.)
Permitted Total Load
65 kg (143.3 lbs.)
Cable Port
Ø50 mm (2.0 in)
Model
TH3-PE-025
TH3-PE-065
TH3-PE-100
Chamber Volume (L / cu ft)
25 / 0.9
65 / 2.3
100 / 3.5
Interior Width (mm)
350
400
500
Interior Depth (mm)
220
330
380
Interior Height (mm)
350
495
530
Wire Shelves (Std. / Max.)
2 / 7
2 / 10
2 / 10
Water Tank Capacity (L)
8
12
12
Weight (kg)
80
110
130
Electrical Requirements
AC230V, 1Ph, 50/60Hz, 7.2A
AC230V, 1Ph, 50/60Hz, 9.4A
AC230V, 1Ph, 50/60Hz, 10.5A
Catalog No.
AAH822132K
AAH822232K
AAH822332K
Catalog No. (EU Only)
AAH822135K
AAH822235K
AAH822335K

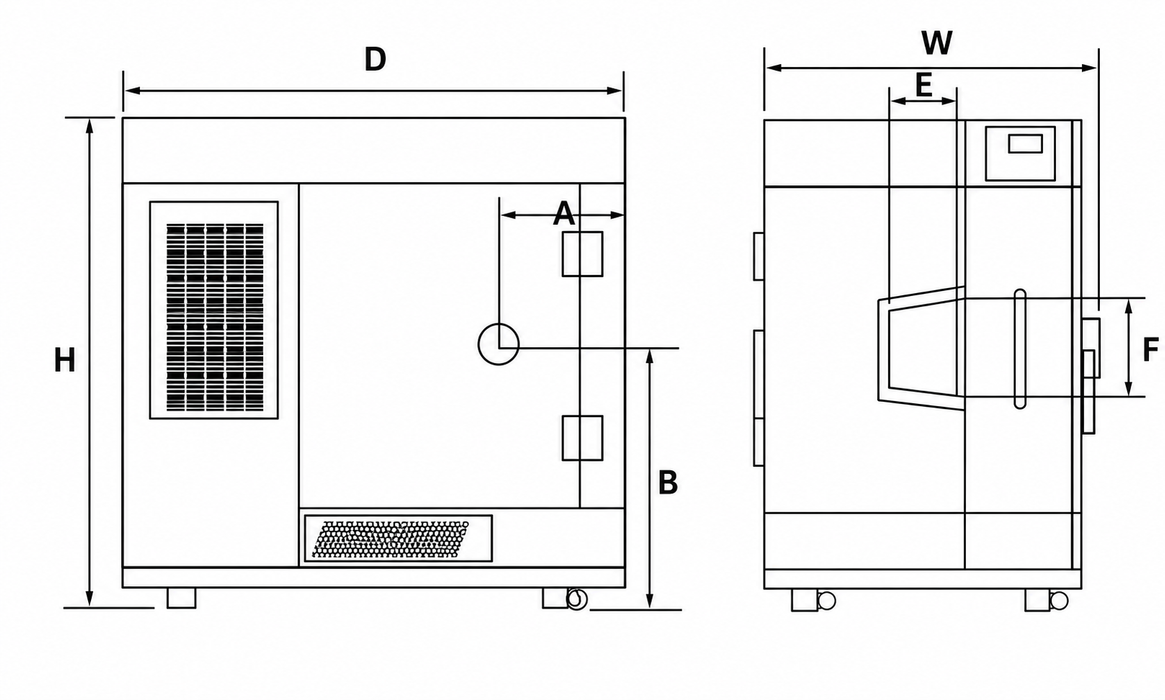

Overall Dimensions (mm / inch)
TH3-PE-025
TH3-PE-065
TH3-PE-100
W
550 / 21.7
600 / 23.6
700 / 27.6
D
880 / 34.6
1050 / 41.3
1110 / 43.7
H
915 / 36.0
1060 / 41.7
1100 / 43.3
A
211 / 8.3
276 / 10.9
276 / 10.9
B
495 / 19.5
580 / 22.8
580 / 22.8
E
170 / 6.7
170 / 6.7
170 / 6.7
F
229 / 9.0
229 / 9.0
229 / 9.0
Product Manual
User manual for Jeio Tech Temperature and Humidity Chamber Tabletop Type can be found here.
