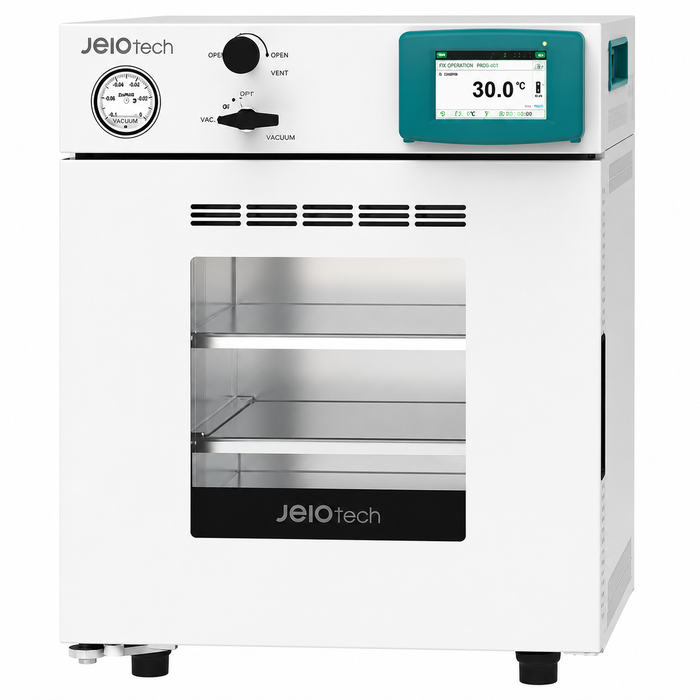

Jeio Tech | Vacuum Ovens | High Precision Laboratory Vacuum Drying Oven With Advanced Safety Features Up to 250°C
The Jeio Tech Vacuum Ovens are designed for reliable vacuum drying applications that require precise temperature control, uniform heating, and enhanced safety.
Available at Alto Med Supply, this laboratory vacuum oven is ideal for research laboratories, material testing, pharmaceutical processing, electronics, and other applications that require low-pressure heating and moisture removal.
This vacuum drying oven offers a wide temperature range up to 250°C with excellent temperature uniformity of ±1.5°C at 100°C.
The advanced three-point temperature calibration system helps maintain accurate heating performance across a wide operating range.
Stainless steel interior surfaces and durable aluminum shelves provide excellent corrosion resistance while making cleaning and maintenance easier.
Designed for improved usability, the vacuum line and release line are separated for more convenient operation, while the top-mounted display helps reduce floor space requirements in laboratory environments.
An optional Viton gasket is available for handling highly reactive chemical substances during drying applications.
The large LCD display provides clear visibility and an easy viewing angle for monitoring operating conditions.
The oven supports PC connectivity through USB and RS-232 ports for convenient data collection and external control. Optional LC Connected mobile monitoring allows users to monitor the oven remotely when paired with the LC Green Box system.
Additional convenience features include automatic event recording, real-time alarm and operation graphs, automatic test data saving in CSV format, and programmable ramp rate control for gradual temperature increases on supported models.
For GMP-compliant environments, the oven can be integrated with optional 21 CFR Part 11 compliant LC Data Keeper software for secure audit-ready data management.
The built-in Wait On/Off timer supports operation scheduling for up to 99 hours and 59 minutes.
Safety is a major feature of the Jeio Tech Vacuum Ovens. The advanced door structure with a built-in buffer system helps safely release internal pressure during vacuum operation or unexpected internal pressure events.
A polycarbonate safety cover helps protect users in case of toughened glass breakage.
Additional safety systems include over-temperature protection, overcurrent protection, controller lock function, temperature deviation alarms, and a safe-touch exterior surface even during high-temperature operation.
For optimal performance, Jeio Tech recommends using a cold trap bath on the vacuum line to help protect the vacuum pump from water vapor and solvents while supplying dry air to samples during operation.
Key Features
-
High Temperature Range: Operates up to 250°C.
-
Uniform Heating: Ensures stable temperature control.
-
Stainless Steel Chamber: Durable and corrosion resistant.
-
LCD Display: Enables easy monitoring.
-
USB & RS-232: Supports data transfer and control.
-
Vacuum Safety: Includes pressure release protection.
-
Safety Alarms: Provides overheat protection.
-
Controller Lock: Prevents accidental changes.
Specifications
| OV4 Series Vacuum Oven Specifications |
| Specification |
OV4-30 |
OV4-65 |
| Chamber & Temperature Performance |
| Control Panel |
5 in |
5 in |
| Chamber Volume |
28 L (1.0 cu ft) |
65 L (2.3 cu ft) |
| Temperature Range |
Ambient +15°C to 250°C
(Ambient +27°F to 482°F) |
Ambient +15°C to 250°C
(Ambient +27°F to 482°F) |
| Temperature Fluctuation @ 100°C |
±0.2°C (±0.36°F) |
±0.2°C (±0.36°F) |
| Temperature Variation @ 100°C |
±1.5°C (±2.7°F) |
±1.5°C (±2.7°F) |
| Heating Time to 100°C |
70 min |
90 min |
| Vacuum Gauge Range |
0 to 0.1 MPa |
0 to 0.1 MPa |
| Dimensions & Weight |
| Interior Dimensions (W × D × H) |
302 × 305 × 302 mm
11.9 × 12.0 × 11.9 in |
402 × 405 × 402 mm
15.8 × 15.9 × 15.8 in |
| Exterior Dimensions (W × D × H) |
534 × 522 × 655 mm
21.1 × 20.6 × 25.8 in |
636 × 622 × 755 mm
25.0 × 24.5 × 29.7 in |
| Net Weight |
69 kg (152.1 lbs.) |
110 kg (242.5 lbs.) |
| Shelf Configuration |
| Standard / Maximum Shelves |
2 / 3 |
3 / 4 |
| Max. Load per Shelf |
20 kg (44.1 lbs.) |
20 kg (44.1 lbs.) |
| Electrical Requirements |
| 230V, 50/60Hz |
5.7 A |
6.7 A |
| 120V, 60Hz |
10.2 A |
11.7 A |
| Catalog Numbers |
| 230V Models |
AAH13315K |
AAH13325K |
| 120V Models |
AAH13316U |
AAH13326U |
