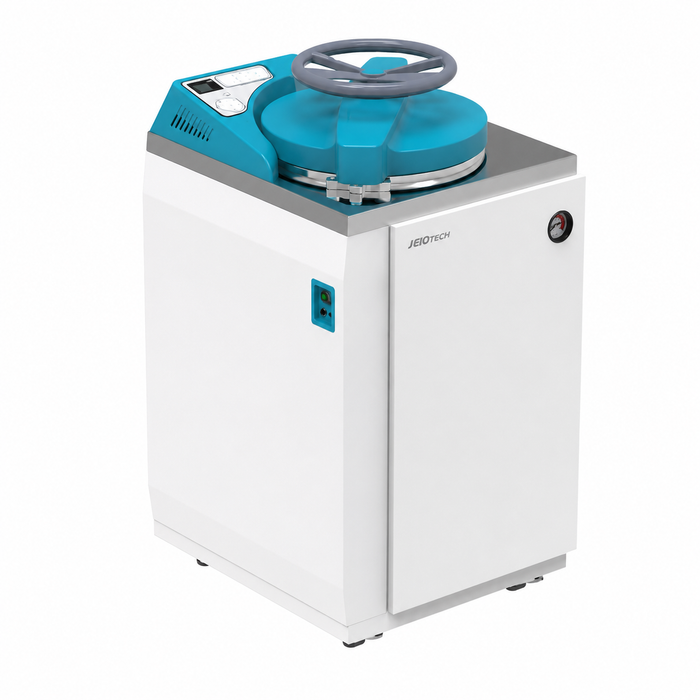

Jeio Tech | Vertical Laboratory Autoclave Sterilizer | With Microprocessor Temperature Control, and Advanced Safety Features
The Jeio Tech Vertical Laboratory Autoclave Sterilizer available at Alto Med Supply is designed for reliable and efficient sterilization in laboratories, research facilities, medical settings, and industrial environments.
Featuring advanced microprocessor temperature control and calibration functions, this top-loading autoclave delivers precise sterilization for liquids, solids, instruments, and agar media applications.
The automatic sterilization system supports unattended operation with multiple standard and programmable modes for flexible performance.
Its spacious stainless steel chamber allows high-volume sterilization with stackable baskets, while the corrosion-resistant construction ensures long-lasting durability and low maintenance.
For added convenience, the autoclave includes an easy-to-read control display, sterilization process indicators, LED status lamps, and a front pressure gauge for quick monitoring.
Optional mobile app connectivity and data recording capabilities help support laboratory documentation and GMP-compliant workflows.
Built with multiple safety protections, this laboratory autoclave includes over-temperature, over-pressure, low water level, and sterilization failure warnings for dependable operation and user safety
Key Features
Microprocessor Control: Precise temperature control.
Wide Temperature Range: 60°C to 123°C operation.
Automatic Sterilization: Fully automated cycles.
Multiple Modes: For liquids, solids, and agar.
VFD Display: Easy monitoring and control.
Pressure Gauge: Quick pressure checks.
Vertical Chamber: Space-saving design.
Stainless Steel Chamber: Durable and corrosion resistant.
Mobile Monitoring: Optional remote access.
Safety Protection: Built-in alarms and safeguards.
Specifications
ST Series Vertical Autoclaves Specifications
Specification
ST-50G
ST-65G
ST-85G
ST-105G
Control System
Controller
Microprocessor PID Control
Capacity
Chamber Volume
50 L (1.76 cu ft)
65 L (2.29 cu ft)
85 L (3.0 cu ft)
105 L (3.7 cu ft)
Temperature & Pressure
Sterilization Temperature
110°C to 123°C (230°F to 253.4°F)
Melting Temperature
60°C to 100°C (140°F to 212°F)
Sterilization Pressure @ 121°C
1.1 to 1.2 kg/cm²
Pressure Gauge Range
-0.1 to 0.6 MPa
Permissible Altitude
Up to 800 m
Safety Features
Protection System
Over Temperature Protector, Pressure Safety Valve, Over Current Protector
Warning Alerts
Over Temp., Low Temp., Low Heat, Sterilization Failure, Low Water Level
Timer
Operating Timer
0 to 999 Minutes
Chamber Dimensions (W × H)
Metric
400 × 458 mm
400 × 558 mm
400 × 758 mm
400 × 908 mm
Imperial
15.75 × 18.03 in
15.75 × 21.97 in
15.75 × 29.84 in
15.75 × 35.75 in
Exterior Dimensions (W × D × H)
Standard Unit
624 × 672 × 870 mm
624 × 672 × 971 mm
624 × 672 × 1083 mm
624 × 672 × 1233 mm
With Exhaust Tank
722 × 672 × 870 mm
722 × 672 × 971 mm
722 × 672 × 1083 mm
722 × 672 × 1233 mm
Maximum Door Opening (W × D × H)
Metric
1012 × 672 × 882 mm
1012 × 672 × 983 mm
1012 × 672 × 1095 mm
1012 × 672 × 1245 mm
Imperial
39.84 × 26.46 × 34.72 in
39.84 × 26.46 × 38.70 in
39.84 × 26.46 × 43.11 in
39.84 × 26.46 × 49.01 in
Basket Dimensions (Ø × H)
Metric
380 × 180 mm
380 × 230 mm
380 × 330 mm
380 × 405 mm
Imperial
14.96 × 7.09 in
14.96 × 9.05 in
14.96 × 12.99 in
14.96 × 15.94 in
Weight
Net Weight
94.5 kg (208.34 lbs)
99.5 kg (219.36 lbs)
104 kg (229.28 lbs)
110 kg (242.51 lbs)
Electrical Requirements
Power Supply
230V, 50/60Hz, 14.3A
230V, 50/60Hz, 14.3A
230V, 50/60Hz, 14.3A
230V, 50/60Hz, 21.3A
Ordering Information
Catalog Number
AAHL1015K
AAHL1025K
AAHL1035K
AAHL1045K
Note: This product is not available for usage at an altitude higher than 800m.
Product Manual
User manual for Jeio Tech Vertical Laboratory Autoclave Sterilizer can be found here.
