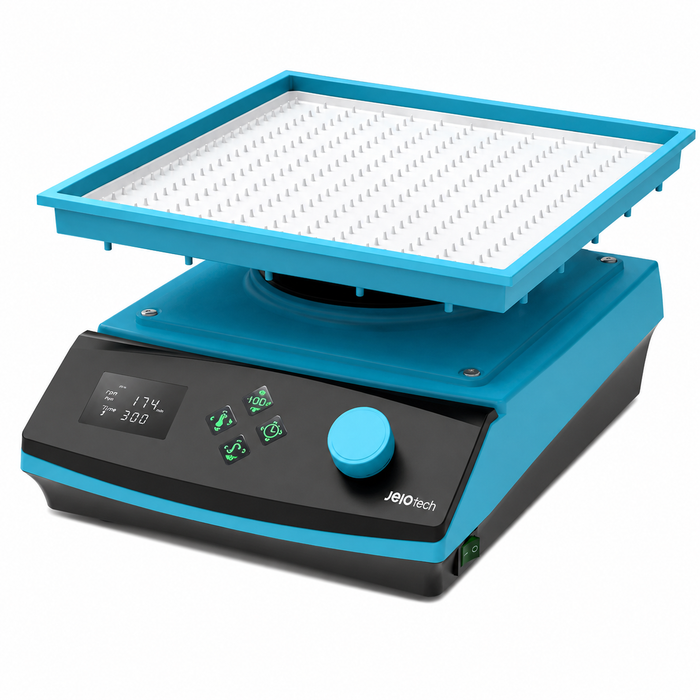

Jeio Tech | Waving Shaker | Optimized Waving Shaker for Laboratory Mixing, Microplates and Temperature Chamber Applications
The Jeio Tech Optimized Waving Shaker, available at Alto Med Supply, is designed to deliver reliable and efficient sample mixing for a wide range of laboratory applications.
This compact laboratory shaker features an adjustable operating angle from 0° to 13°, allowing users to customize the shaking motion based on specific testing and research requirements.
With shaking speeds up to 100 rpm and stable low-speed performance, it provides consistent and accurate sample processing for laboratories, research facilities, and scientific environments.
Built for flexibility and convenience, this waving shaker can operate inside temperature-controlled chambers such as incubators and cold rooms, supporting ambient temperatures from 2°C to 60°C.
Its lightweight and space-saving design makes it easy to move and use in different laboratory settings.

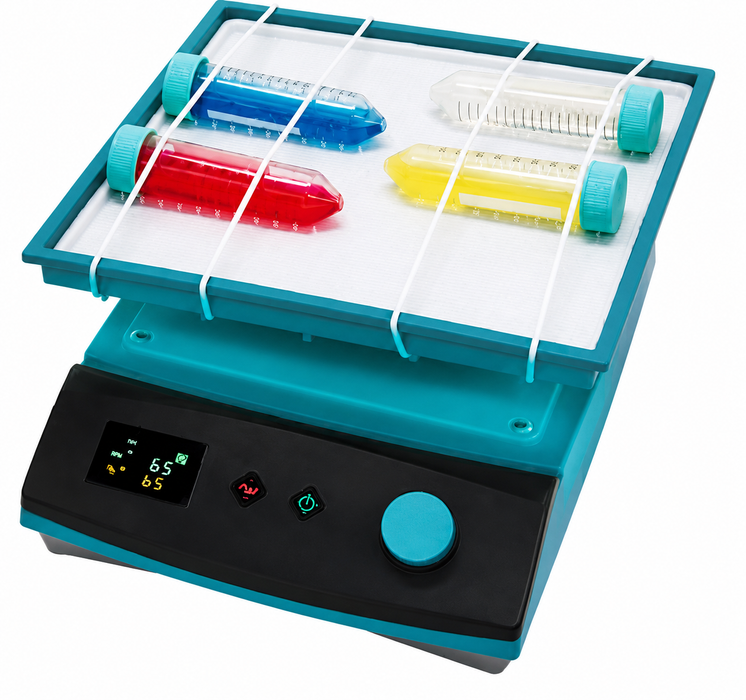

The unit can accommodate up to six microplates and features a convenient tray structure for quick mounting and removal of samples.
The Jeio Tech waving shaker is equipped with PID feedback control for precise shaking performance based on sample weight.
A clear VFD display, touch keys, and control knobs make operation simple and user-friendly.
Users can easily monitor the set RPM, actual RPM, elapsed time, and countdown timer, which can be set for up to 99 hours and 59 minutes.
Designed with safety and durability in mind, the shaker includes automatic self-diagnostic error checks, overcurrent protection, and a chemically resistant PP body for long-lasting laboratory use.
Powered by a universal 100–240V, 50/60Hz system, this laboratory waving shaker is ideal for research labs, clinical laboratories, biotechnology facilities, and educational environments looking for dependable and accurate shaking performance.
Key Features
-
Adjustable Angle: Adjustable from 0° to 13°.
-
Stable Shaking: Provides reliable mixing up to 100 rpm.
-
6-Plate Capacity: Supports multiple samples.
-
PID Control: Ensures consistent performance.
-
Digital Timer: Supports timed operation.
-
VFD Display: Enables easy monitoring.
-
RPM Display: Shows set and actual speed.
-
Compact Design: Saves laboratory space.
-
Chemical-Resistant Body: Durable and easy to clean.
-
Safety Protection: Includes diagnostics and overload protection.
-
Universal Power: Supports 100–240V operation.
Specifications
| Waving Shaker Specifications |
| Performance |
| Motion Type |
Waving |
| Speed Range |
8 – 100 rpm |
| Speed Accuracy |
±5 rpm (at 100 rpm) |
| Adjustable Tilt Angle |
0° – 13° |
| Timer Range |
1 min. – 99 hr. 59 min. |
| Platform and Dimensions |
| Tray Size (W × D) |
276 × 276 mm (10.87 × 10.87 in) |
| Body Size (W × D × H) |
249 × 325 × 138 mm (9.8 × 12.8 × 5.4 in) |
| Weight Information |
| Net Weight |
3.7 kg / 8.16 lbs. |
| Shipping Weight |
13 lbs. |
| Package Dimensions |
13 × 16 × 11 in |
| Electrical Specifications |
| Power Supply |
AC 100–240V, 50/60Hz |
| Ordering Information |
| Catalog No. |
AAH381115U |
Product Manual
User manual for Jeio Tech Waving Shaker can be found here.
