Mackworth | EasyFit System | Portable Gantry Lift for Safe, No-Installation Home Patient Transfers up to 440 lbs
The Mackworth EasyFit 440 Portable Gantry System, available at Alto Med Supply, offers a safe and convenient solution for patient transfers in home care environments, without the need for structural modifications.

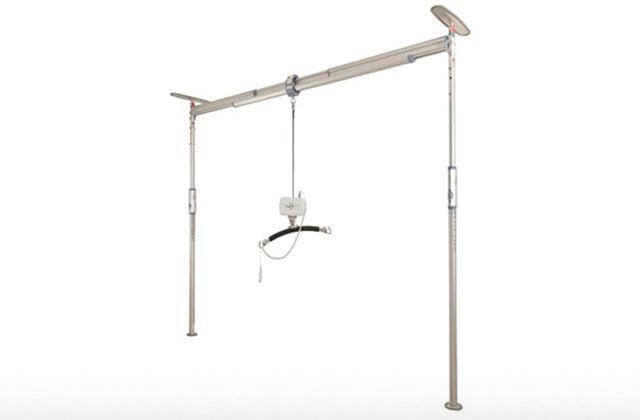

Designed for situations where a fixed ceiling track is not practical, the EasyFit System uses a secure pressure-fit mechanism to anchor the gantry between the floor and a structurally sound ceiling.
It adjusts to ceiling heights between 7 and 10 feet, making it versatile for a variety of room configurations.

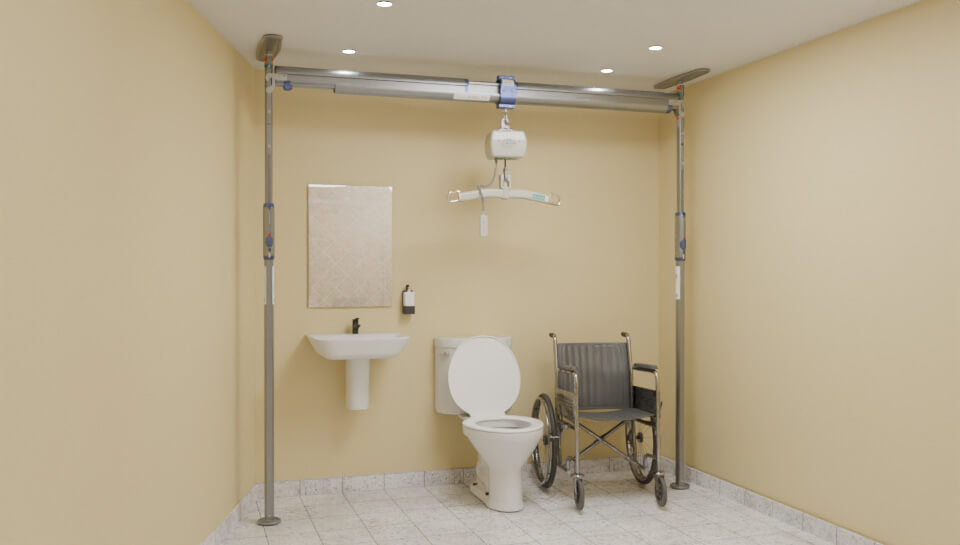

This freestanding gantry system is ideal for use with portable patient lifts like the Mackworth CP440P, enabling caregivers to safely assist individuals with limited mobility while promoting greater independence at home.
With a lifting capacity of up to 440 lbs., it supports a wide range of patient needs and ensures a dignified, comfortable transfer experience for both user and caregiver.
The EasyFit 440 is quick to assemble—no tools required—and can be set up by one person (though two-person assembly is recommended for ease and safety).
Its adjustable length further enhances flexibility, allowing the system to adapt to different room sizes and care scenarios.
Whether you're outfitting a temporary care space or creating a long-term mobility solution, the Mackworth EasyFit 440 from Alto Med Supply delivers reliable performance, easy setup, and peace of mind for caregivers and patients alike.
Key Features
-
Portable Gantry Design: Ideal for safe patient transfers when a fixed ceiling lift is not an option.
-
Pressure Fit System: Secures between floor and ceiling without any structural modifications.
-
Adjustable Height: Fits ceiling heights from 7 to 10 feet (2.1–2.8 meters).
-
Tool-Free Assembly: Quick and easy setup with no tools required; two-person assembly recommended.
-
High Weight Capacity: Supports up to 440 lbs (200 kg), suitable for a wide range of users.
-
Home Care Friendly: Enables users to stay safely in their homes with support from portable lifts.
-
Comfort and Dignity: Designed to provide a secure and respectful transfer experience for both users and caregivers.
-
Adjustable Length: Can be configured to suit various room sizes and care needs.
-
Compatible with CP440P Lift: Works seamlessly with the Mackworth CP440P portable patient lift (sold separately).
Specifications
| Easy Fit 440 Specifications |
|
| User Weight Limit (Max Rated Load): |
440 lbs. |
| Frame Construction Material: |
Aluminum |
| Minimum Useable Track Length: |
107.32" |
| Minimum Ceiling Height: |
80.55" |
| Maximum Ceiling Height: |
108.27" |
| Total Weight (Boxed): |
59.7 lbs. |
| Unit Weight (with Trolley) |
63.1 lbs. |
Product Manual
User manual for Mackworth EasyFit System can be found here.
Set-Up Guide for Mackworth EasyFit System can be found here.
