At Alto Med Supply, we offer the Medacure American Spirit 42" Fixed Width Long Term Care Bed an ultra-wide electric hospital bed built for comfort, safety, and ease of use in senior care settings.
This model features a 42-inch fixed width and an extendable length from 80” to 88”, making it ideal for a range of patient needs.
Available in both standard and ultra-low height settings (as low as 9”), it’s designed to support both caregiver efficiency and resident safety.
The bed is equipped with four electric functions including hi/lo, head, foot, and auto contour adjustments, all controlled via an intuitive 8-function hand pendant with easy-to-understand symbols.
Built for durability, the reinforced steel frame and 4” locking casters ensure long-lasting performance and stability.
Additional features include IV pole sockets at each corner, retractable bumper guards to protect walls, and quick-release head and footboards for added convenience.
Each bed includes attractive wood grain bed boards and QBar assist bars, available in Mahogany, Amber Cherry, or Maple finishes.
Trust Alto Med Supply for high-quality, feature-rich long term care beds like the Medacure American Spirit, delivered with service you can rely on.
Key Features
-

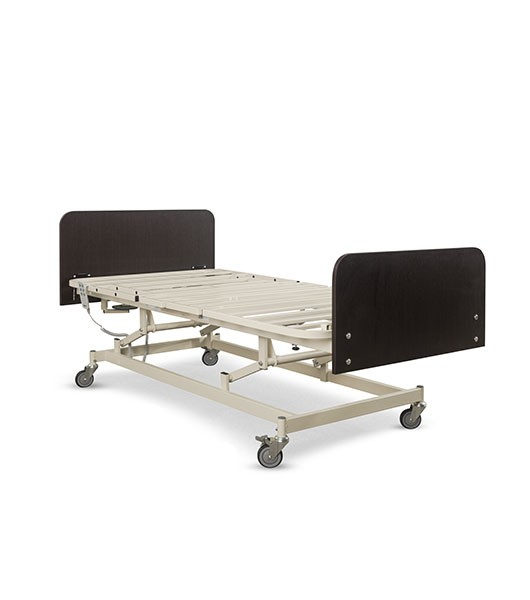

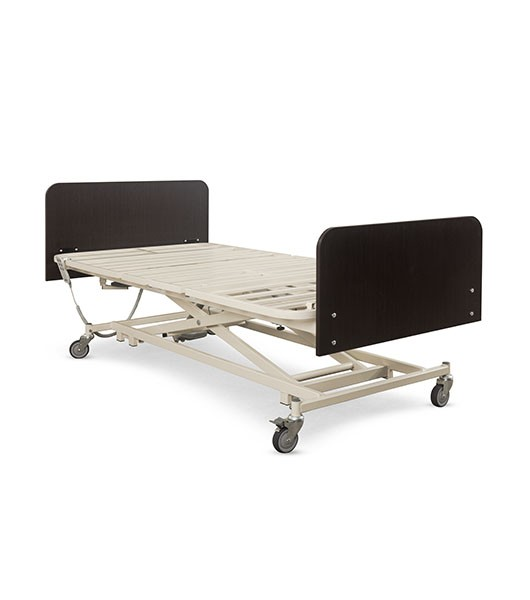

42″ Fixed Width Frame: Extra-wide design for improved comfort and support in long term care settings.
-

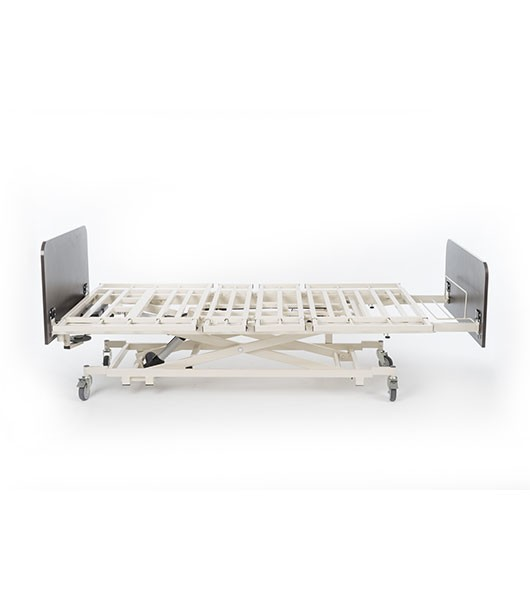

Adjustable Length: Bed extends from 80″ to 88″ to accommodate different patient heights.
-

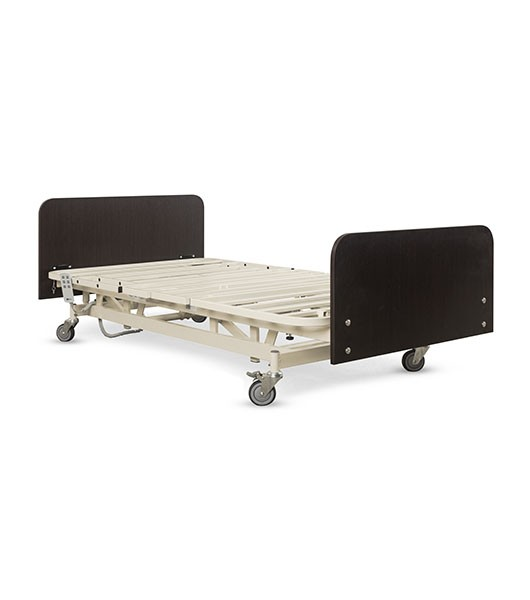

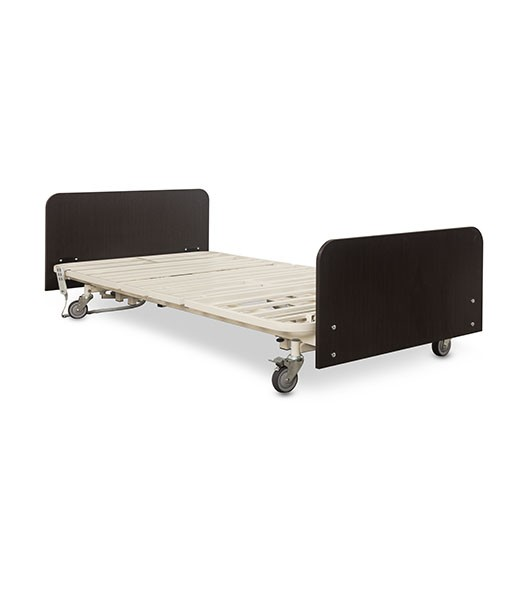

Standard or Ultra-Low Height: Height options go as low as 9″ to enhance patient safety and caregiver access.
-

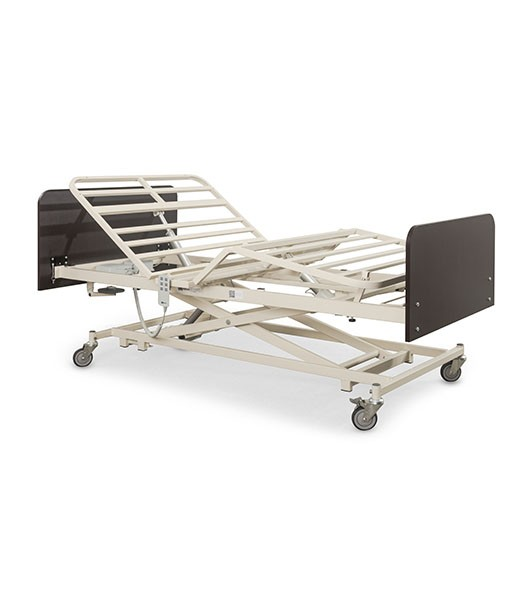

4-Function Electric Bed: Allows easy adjustment of head, foot, height, and auto contour positions.
-
8-Function Hand Pendant: Simple controls with universal symbols for easy operation by patients or caregivers.
-
Reinforced Steel Frame: Strong rectangular steel tubing provides long-lasting durability and stability.
-

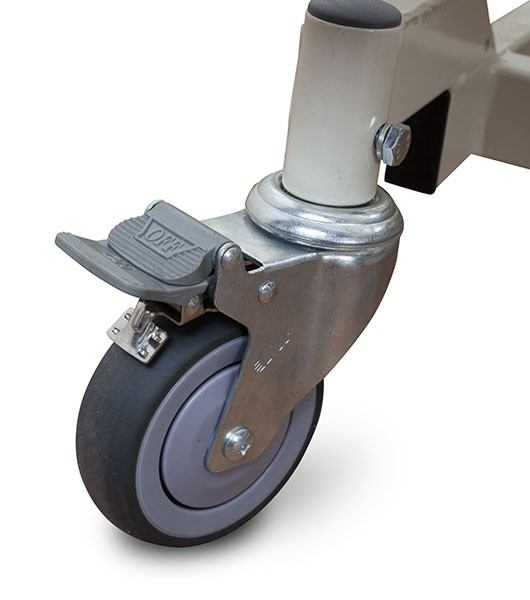

4″ Locking Casters: Smooth mobility with secure locking for safe use and positioning.
-
Retractable Bumper Guards: Protect walls from scratches and damage at the head end of the bed.
-

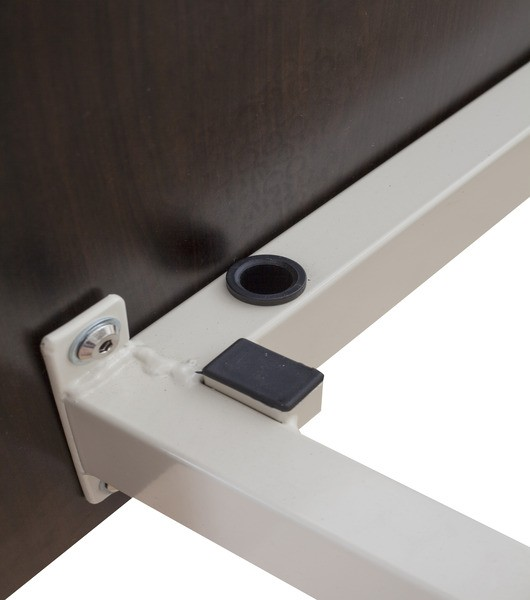

IV Pole Sockets: Integrated on bed corners for easy IV attachment and accessibility.
-
Quick Release Head & Foot Boards: Easily removable for cleaning, transport, or maintenance.
-
Included Accessories: Comes with QBar assist bars and wood bed boards in Mahogany, Amber Cherry, or Maple.
-
Linak Actuators & Controls: Reliable and quiet motor system for smooth electric adjustments.
Specifications
| Function |
Specification |
| MODEL NO. |
SLB42 - AMERICAN SPIRIT |
| MODEL NO. |
ULB42 - ULTRA LOW |
| FUNCTIONS |
8 FUNCTION ELECTRIC - HI/LO, HEAD, FOOT, AUTO CONTOUR |
| MATTRESS DECK DIMENSIONS |
80" L X 42" W |
| BUILT-IN WIDTH EXPANSION |
NO - FIXED ULTRA WIDE WIDTH 42" |
| BUILT-IN LENGTH EXTENSION |
80" - 88" |
| LOW RANGE |
SLB42: 14" / ULB42: 9" |
| HIGH RANGE |
30" |
| ACTUATOR BRAND |
LINAK |
| WEIGHT CAPACITY |
SLB42: 550 LBS. / ULB42: 450 LBS. |
| CASTORS |
4 X 4" CASTORS, 2 LOCKING / 2 SWIVEL |
| UNDERBED CLEARANCE |
5.7" |
| WARRANTY |
15 YEAR ON FRAME; 3 YEAR ON ELECTRONICS; 1 YEAR PENDANT |
Product Manual
User manual for Medacure American Spirit 42″ Wide Long Term Care Bed can be found here.
Shipping
- Free delivery (Contiguous United States Only)
-
Delivery ETA 3-7 business days
-
We also offer white glove engineer delivery with assembly and demonstration if required. Please contact us for a quote.
- If you require faster shipping or shipping anywhere other than the contiguous United States, please contact us for a shipping quote.
Warranty
This product comes with a 15-year manufacturer's parts warranty on frame, 3-year on electronics and 1 year for the hand pendant.
