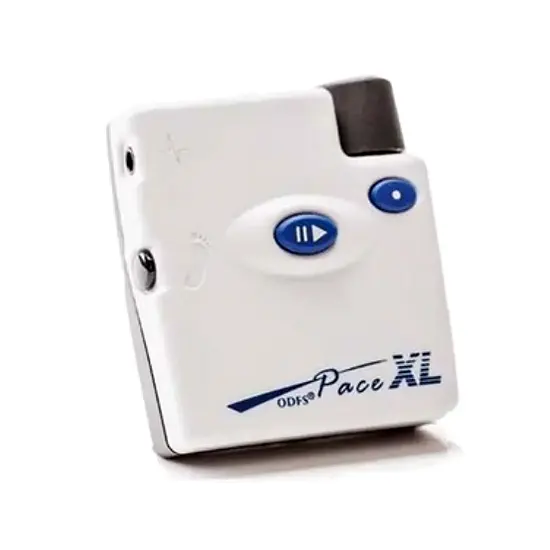

The ODFS® Pace XL, a FDA-cleared single-channel neuromuscular stimulation system designed to support rehabilitation for individuals with upper motor neuron conditions.
Controlled by a wireless footswitch, the Pace XL is primarily used to help correct drop foot while also providing targeted Functional Electrical Stimulation (FES) and Neuromuscular Electrical Stimulation (NMES) for muscle weakness, spasticity, and motor dysfunction.
This advanced neuro rehabilitation device can be used to stimulate muscles in both the upper and lower extremities, including the calf, thigh, gluteal, hand, forearm, arm, and shoulder.
It is commonly recommended for individuals recovering from or managing conditions such as stroke, multiple sclerosis, and cerebral palsy, offering a non-invasive approach to improving mobility, muscle activation, and functional movement.
To ensure proper performance and safety, the ODFS Pace XL requires validated and authorized electrodes.
Replacement electrodes are available through Alto Med Supply, with flexible ordering options including monthly subscriptions or bulk purchasing based on individual therapy needs.
Key Features
-
Improved Ground Clearance During Swing Phase: Helps reduce tripping and falls while making walking smoother and more efficient.
-
Reduced Compensatory Movements: Minimizes unnecessary body adjustments, lowering effort during walking.
-
Improved Walking Efficiency and Speed: Supports easier movement, helping increase overall walking speed.
-
Heel Strike with Eversion Pattern: Enhances loading response and improves stability during stance phase.
-
Greater Stability in Stance Phase: Provides better balance and control while standing and stepping.
-
Increased Range of Motion: Supports smoother joint movement for more natural walking patterns.
-
Reduced Spasticity: Helps decrease muscle tightness for improved comfort and mobility.
-
Improved Safety, Confidence and Independence: Encourages safer walking and greater self-reliance in daily activities.
-
Enhanced Quality of Life and Social Participation: Supports more active movement, leading to better social interaction and lifestyle engagement.
Specifications
| Medical Device Specification |
| Medical device classification |
Class IIa, internally powered, continuous operation. Type BF applied parts |
| Ingress protection rating |
Rating of IP20. No protection against liquid ingress. Do not get the device wet!
Protected against objects entering the stimulator of 12.5mm and above.
The stimulator is effective against fingers or similar objects entering areas of the stimulator. |
| Operational Conditions |
| Temperature |
Electrodes: 5 to 27°C
Alkaline Battery: -20 to 54°C
Lithium Battery: -10 to 40°C
System (excluding above items): 5 to 40°C |
| Relative humidity |
Electrodes: 35 to 50%
System and Batteries: 15 to 90% |
| Atmospheric pressure |
700 to 1060 hPa |
| Storage and Transport Conditions |
| Temperature |
Electrodes: 5 to 27°C (>1 month), 0 to 40°C (<1 month)
Alkaline Battery: 5 to 30°C
Lithium Battery: 0 to 35°C
System (excluding above items): -20 to 70°C |
| Relative humidity |
Electrodes: 35 to 50%
System and Batteries: 15 to 90% |
| Atmospheric pressure |
700 to 1060 hPa |
| Device Details |
| Stimulator size |
72 × 62 × 26 mm |
| Stimulator models |
ODFS® Pace / ODFS® Pace XL |
| Battery type |
PP3, 9V |
| Battery life (average use) |
Alkaline battery: 3 to 6 weeks (Pace), 1 to 2 days (Pace XL)
NiCad or NiMH rechargeable battery: 4 to 8 days (Pace), not recommended (Pace XL)
Lithium polymer rechargeable battery: 3 to 6 weeks (Pace), 1 to 2 days (Pace XL) |
| Stimulator weight |
68 g without battery (Pace), 75 g without battery (Pace XL) |
Product Manual
Product Brochure for Neuro Rehab Recovery ODFS Pace XL can be found here.
Product Specifications for Neuro Rehab Recovery ODFS Pace XL can be found here.
