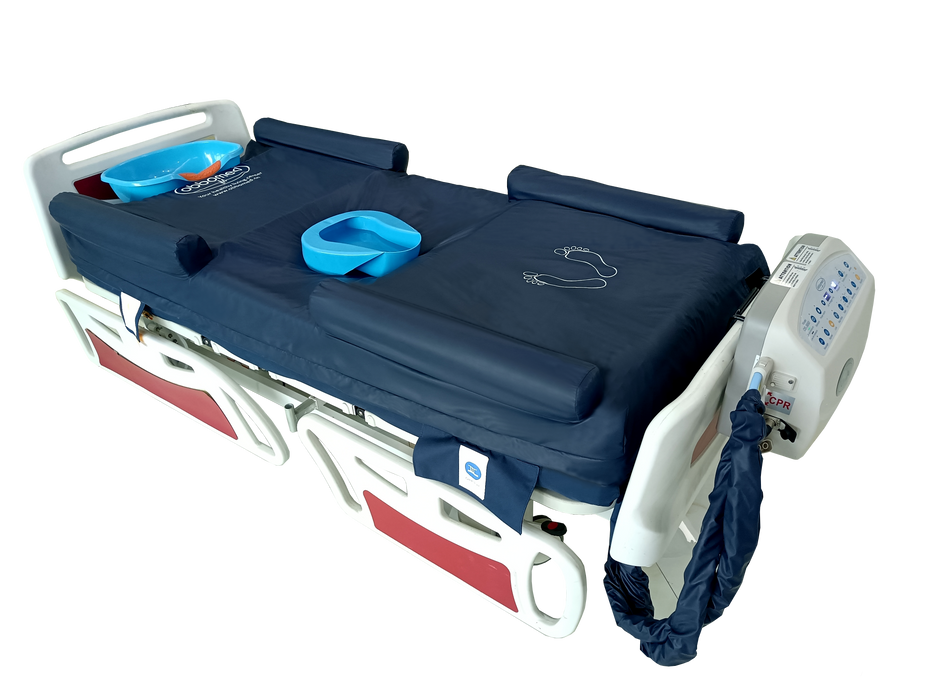

Obbomed | Advanced Alternating Pressure Mattress with Massager and Warmer | Easy Go Bedpan, Self-Rotation, and True Low Air Loss Therapy
The Advanced Alternating Pressure Mattress with Massager and Warmer is available at Alto Med Supply.
Designed for advanced pressure relief, hygiene, and ease of caregiving, this premium system integrates multiple patented technologies that redefine in-bed care for patients with limited mobility or long-term medical needs.
The patented “Easy Go” Bedpan Function enables effortless in-bed toileting with a single touch. In just 20 seconds, four air cells deflate to create a recessed opening for a bedpan eliminating patient lifting, improving hygiene, and reducing caregiver strain.
Similarly, the “Easy Go” Shampoo Function gently lowers the head section to form a basin-ready space, allowing dignified and convenient in-bed hair washing.
Enhancing safety, inflatable air-filled guardrails replace metal rails with soft yet firm barriers that prevent falls without bruising.
A mid-section opening allows easy access, and the rails inflate or deflate instantly at the push of a button.
The self-lateral rotation system offers customizable 15°, 25°, and 40° angles for automated left, right, or alternating turns stimulating blood circulation, relieving pressure, and improving respiratory health.
Four integrated vibration massagers further aid phlegm removal, ease tension, and promote relaxation.
With Dynamic True Low Air Loss (LAL) Therapy, a built-in fan delivers 23 liters of airflow per minute to regulate temperature and moisture, keeping the patient’s skin dry and protected.
The Fowler and seating support stabilize the torso when the bed is elevated, while the cell-on-cell design provides up to 24-hour power outage protection with audio-visual alerts for added safety.
Combining medical-grade performance, intelligent engineering, and patient-centered innovation, the Obbomed OB-3620 “Easy Go” Air Mattress sets a new standard in comfort, safety, and ulcer prevention for modern patient care.
Key Features
Patented “Easy Go” Bedpan Function: Allows in-bed toileting with a single-touch deflation system for quick and hygienic bedpan placement.
Patented “Easy Go” Shampoo Function: Enables in-bed hair washing within seconds through an automated recessed head section for caregiver convenience.
Patented Inflatable “Air-Filled” Guardrail: Soft, adjustable guardrails provide enhanced patient safety and accessibility while preventing injury.
15° Self-Lateral Rotation: Automatically redistributes pressure to improve circulation and reduce the risk of bedsores.
Multiple Rotation Angles (15°, 25°, 40°): Customizable rotation settings support patient mobility, lung function, and comfort.

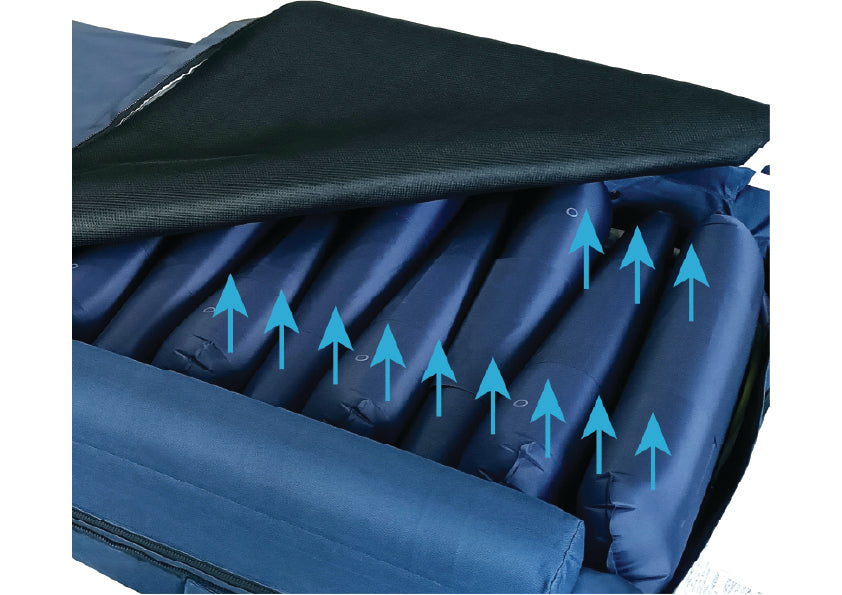

Alternating Pressure Therapy: Continuously shifts air pressure between cells to relieve skin stress and prevent ulcers.
Dynamic Low Air Loss (23 LPM): Built-in airflow fan minimizes heat and moisture, maintaining a dry and comfortable microclimate.
Fowler / Seating Function: Reinforces torso and seat support when the bed is elevated to prevent bottoming out.
24-Hour Power Protection: Cell-on-cell mattress design ensures ongoing support during power outages, with audio-visual alarms.
Sinking Feature with Rotation Protection: Lowers surface up to 4 inches for improved safety and stability during patient repositioning.
Centralization System: Keeps patients safely aligned and balanced during alternating pressure or rotation therapy.
Specifications
Specification
Imperial
Metric
OB-3620 Mattress Dimension
80” L x 36” W x 10–14” H
200 cm L x 90 cm W x 25–35 cm H
Weight Capacity
660 Pounds
300 Kgs
Mattress Weight
30 Pounds
13.6 Kgs
Control Unit Weight
18.5 Pounds
8.4 Kgs
Functions
Alternating, Easy-Go Bedpan and Shampoo, 4-inch Inflatable Guardrail, Low Air Loss (LAL), 15° Self-lateral Rotation, 25° Right / Left / Auto Rotation, 40° Lateral Rotation, Air Flow Fan, Massager
Rotation Angles
15°, 25°, and 40°
Alternating Cycle Time
10, 20, 30, and 40 Minutes
Rotation Circle
10, 20, 30, 40, 60, 90, and 120 Minutes
Pump
50 LPM
50 LPM
Low Air Loss (LAL)
23 LPM
23 LPM
Unit Package Dimensions
19.3” L x 16.9” W x 27.6” H
50 cm L x 43 cm W x 70 cm H
Unit Package Weight
52.9 Pounds
24 Kgs
Product Manual
User manual for the Obbomed Advanced Alternating Pressure Mattress with Massager & Warmer can be found here.
Video
Shipping
Free delivery (Contiguous United States only)
Delivery ETA 3–7 business days
We also offer white-glove engineer delivery with assembly and demonstration if required. Please contact us for a quote.
If you require faster shipping or shipping anywhere outside the contiguous United States, please contact us for a shipping quote.
Warranty
This product comes with a 1-year warranty on the top cover and a 2-year manufacturer’s parts warranty on the control unit and mattress.
If you experience any issues with your product, please contact us and we’ll help to resolve them.
Conditions: Warranty is void if the product is altered, misused, or repaired by unauthorized personnel. Damage from improper maintenance or unsuitable environmental conditions is also excluded.
