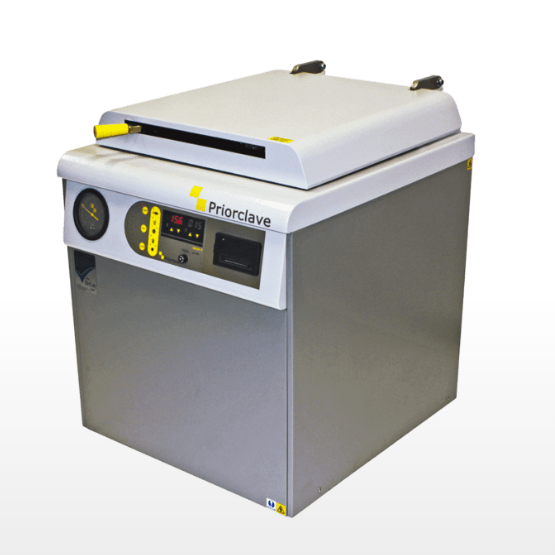

Priorclave | Base Top Loading Autoclave 60–150L Top Loading Autoclave Laboratory Steam Sterilization | V60 EV100 EV150 High-Capacity Research-Grade System
At Alto Med Supply, we offer high-performance Priorclave top-loading laboratory autoclaves designed for dependable, high-capacity steam sterilization.
These compact vertical units are ideal for laboratories and clinical facilities, delivering powerful performance while saving valuable floor space.
These autoclaves efficiently sterilize tall vessels, glassware, liquids, growth media, and laboratory waste.
Their energy- and water-efficient design helps reduce operating costs, making them a smart solution for busy laboratory environments.
Built with a durable cylindrical, non-jacketed pressure vessel and in-chamber heating elements, they provide consistent, contamination-free results.
The design avoids risks linked to water recirculation systems. Each unit meets ASME, ETL (UL & CSA), CE, and ISO 9001 standards.
Custom-built to fit your application, these autoclaves offer gravity or vacuum cycle options and advanced Tactrol® programmable controls.
Stainless steel load supports come standard for optimal steam circulation. Every unit is backed by a 36-month or 10,000-cycle warranty for long-term reliability.
Key Features
-
Programmable Tactrol® 2 Control System: Advanced, fully programmable control panel with simple one-touch start for precise steam sterilization cycles.
-
Customizable Sterilization Cycles: Includes Freesteaming, Load Cooling, Media Warming, and Delayed Start options for flexible laboratory autoclave operation.
-
ASME-Certified 316L Stainless Steel Chamber and Door: Corrosion-resistant, high-grade stainless steel construction for durability and reliable laboratory performance.
-
Quickseal Single-Action Safety Lid: Interlocking lid design prevents unsafe opening during pressurized steam sterilization cycles.
-
Stainless Steel Loading Baskets: Durable baskets designed to improve steam circulation and support efficient sterilization of lab materials.
-
Biomaster™ Antimicrobial Surfaces: Built-in antimicrobial protection to help reduce surface bacteria and support a cleaner lab environment.
Specifications

60L Top-Loading Specifications
| Working Volume |
Operating Range |
Loading Height |
Heating |
| 60 Liters |
Up to 277°F, 32 psi (136°C, 2.2 Bar) |
33.5" (850mm) |
Electrical |
| Heat Input |
Chamber Size (Diameter x Depth) |
External Dimensions (W x D x H) |
Floor Weight (Unloaded) |
| 3.2kW Single Phase |
13.8" x 24.4" (350mm x 620mm) |
18.6" x 24.4" x 35.4" (472mm x 620mm x 900mm) |
198.4 lbs (90kg) |
| Minimum Installation (W x D x H) |
| 30.6" x 36.4" x 59.9" (777mm x 925mm x 1522mm) including door swing |

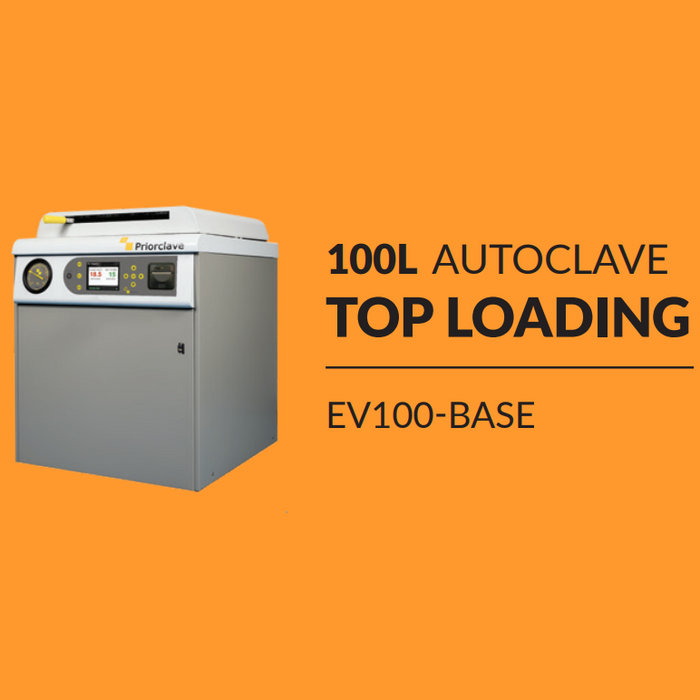

100L Top-Loading Specifications
| Working Volume |
Operating Range |
Loading Height |
Heating |
| 100 Liters |
Up to 136°C, 2.2 Bar (277°F, 32 psi) |
29.7" (755mm) |
Internal Electrical OR House Steam Source |
| Heat Input |
Chamber Size (Diameter x Depth) |
External Dimensions (W x D x H) |
Floor Weight (Unloaded) |
| 11.2kW Internal OR 1.2kW House (Three Phase) |
19.5" x 19.5" (496mm x 496mm) |
26" x 33.1" x 33.1" (660mm x 840mm x 840mm) |
324.1 lbs (147kg) |
| Minimum Installation (W x D x H) |
| 38" x 45.1" x 55.1" (965mm x 1146mm x 1400mm) including door swing |

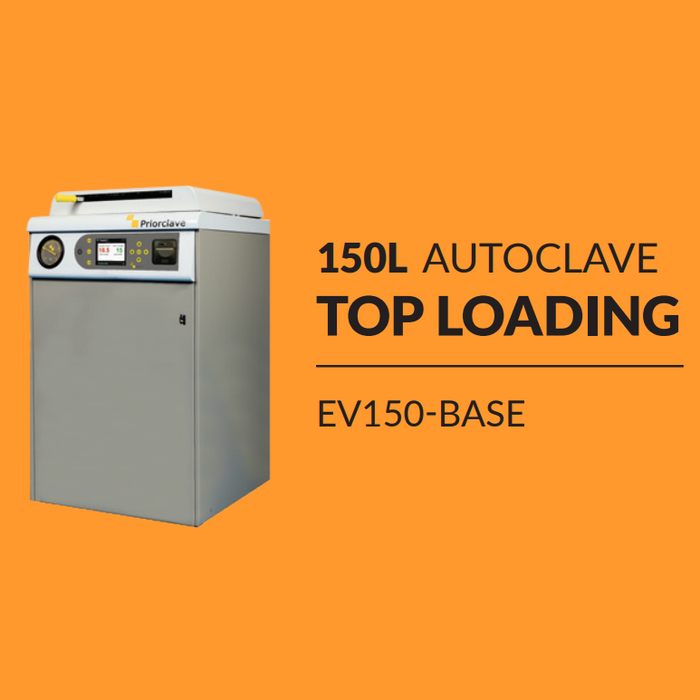

150L Top-Loading Specifications
| Working Volume |
Operating Range |
Loading Height |
Heating |
| 150 Liters |
Up to 136°C, 2.2 Bar (277°F, 32 psi) |
36.8" (935mm) |
Internal Electrical OR House Steam Source |
| Heat Input |
Chamber Size (Diameter x Depth) |
External Dimensions (W x D x H) |
Floor Weight (Unloaded) |
| 11.2kW Internal OR 1.2kW House (Three Phase) |
19.5" x 28.4" (496mm x 720mm) |
26" x 33.1" x 40.2" (660mm x 840mm x 1020mm) |
363.8 lbs (165kg) |
| Minimum Installation (W x D x H) |
| 38" x 45.1" x 64.6" (965mm x 1146mm x 1640mm) including door swing |
Product Manual
User manual for Base Top Loading-60 Liter can be found here.
User manual for Base Top Loading-100 Liter can be found here.
User manual for Base Top Loading-150 Liter can be found here.
