Span America | Encore Heavy Duty Low Hospital Bed | Glidealign Retractable Deck Technology, Readywide Integrated Expansion and Smart Stop Safety System

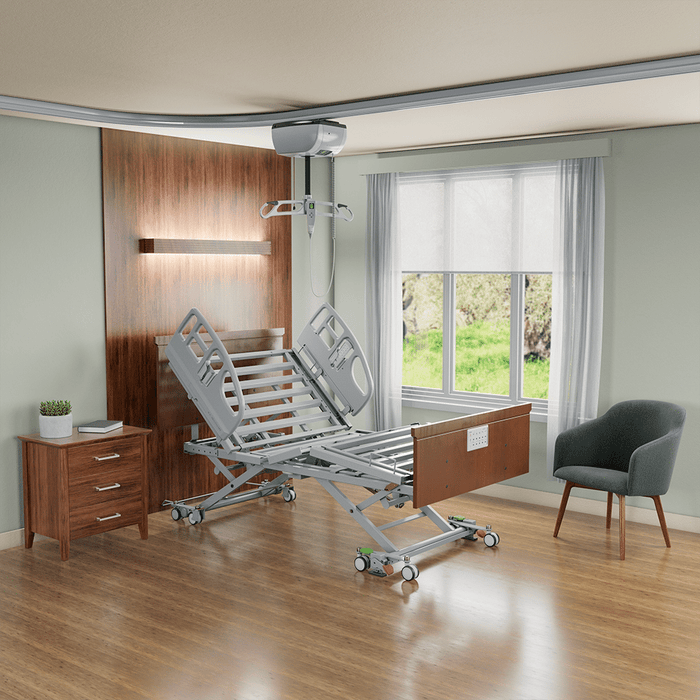

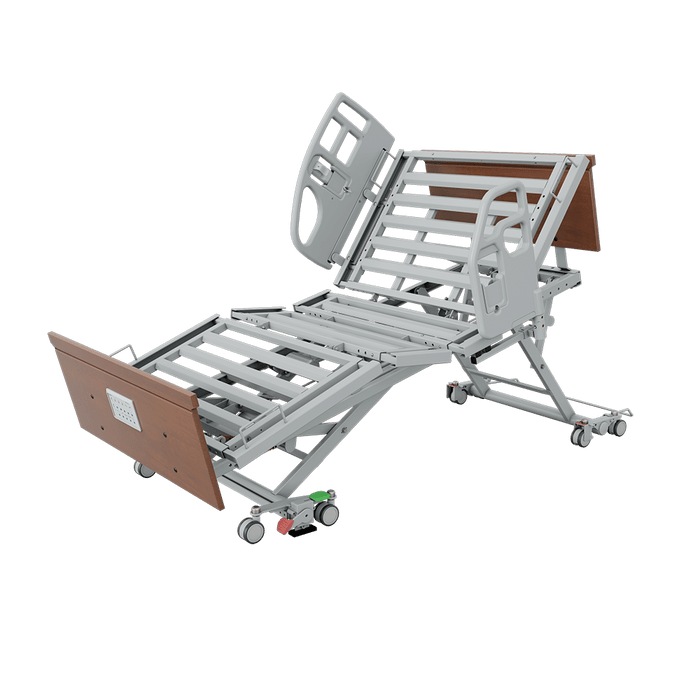

At Alto Med Supply, we offer the Span America Encore Heavy Duty Low Hospital Bed, a premium clinical bed designed to improve patient comfort, safety, and caregiver efficiency.
Engineered for advanced care environments, this hospital bed combines durability with innovative functionality to support a wide range of patient needs and medical settings.
The Encore Bed features Glidealign® retractable deck technology for smooth, precise positioning and Readywide® integrated two-click expansion to accommodate different mattress sizes with ease.
Safety is enhanced through the Intelligent Smart Stop® system, which automatically pauses the bed in low positions to help reduce fall risk and improve low-bed operation.
For greater clinical versatility, it also includes advanced positioning options such as Comfort Chair, Trendelenburg/Reverse Trendelenburg (T/RT), and Cardiac Care positioning, making it a reliable solution for both patients and caregivers.
Key Features
Glidealign® Retractable Deck Technology:
Maintains proper patient alignment during bed movement to help reduce fall risk, minimize skin shear, and improve overall safety in long-term care settings.
Readywide® Integrated Two-Click Expansion:
Easily adjusts bed width to 39" or 42", improving patient access, transfer safety, and compatibility with different care environments.
Intelligent Smart Stop® Low-Position Safety System:
Automatically pauses bed lowering at a safe low height, helping prevent falls and ensuring caregiver confirmation before further adjustment.
High Weight Capacity for Bariatric Care:
Supports up to 600 lbs (SWL) on bariatric configurations, making it suitable for a wide range of patient care needs.
Enhanced Caregiver Ergonomics:
Designed to reduce physical strain and improve safety during patient handling, repositioning, and daily care tasks.
Improved Patient Comfort and Stability:
Provides a secure, stable sleeping surface that enhances comfort while supporting safer clinical positioning.
Advanced Clinical Positioning Options:
Includes Comfort Chair, Trendelenburg/Reverse Trendelenburg (T/RT), and Cardiac Care positions for versatile patient treatment support.
3-Position Assist Device for Safe Transfers:
Ergonomic support rail improves patient ingress and egress while enhancing caregiver assistance and control.
Mobility and Stability at Any Height:
Hospital-grade swivel casters allow smooth movement while maintaining strong stability during use and transport.
Durable, Easy-Clean Bed Design:
Features reinforced slat construction, under-bed lighting, and protective base components for long-term clinical reliability.
Specifications
Height Floor to Mattress Support
7-7/8" - 31" (200 mm - 787 mm)
Deck Angles – Back Elevation
0° – 70°
Deck Angles – Knee Elevation
0° – 30°
Bed Length – Overall Length
82", 86", 90" (2083 mm, 2184 mm, 2286 mm)
Sleep Surface – Retraction Travel
12" / 305 mm
Bed Length – Sleep Surface
76", 80", 84" (1930 mm, 2032 mm, 2134 mm) *Requires 4" Bed Extender Kit
Bed Width – Sleep Surface
36", 39", 42" (889 mm, 991 mm, 1067 mm)
Bed Width – With Side Rails
40-1/2", 43-1/2", 46-1/2" (1029 mm, 1105 mm, 1181 mm)
Weight of Bed (without accessories)
253 lbs / 115 kg
Safe Working Load
600 lbs / 272 kg
Mobility (at any height)
7-7/8" - 31" (200 mm - 787 mm)
Bed End Panels
Permanent or removable mounting
Ingress Protection Rating
IPX4 (Electrical components IP66)
Electric Motors
Four (4) DC self-lubricating linear actuators
Warranty
Batteries, Hand Pendants, FECs, and Cables: 1 Year
Mechanical: 5 Years
Frame: 10 Years
Welds: 15 Years
User manual for Span America Encore Bed can be found
here.
