Span America | PressureGuard Control Units | Low Air Loss, Alternating Pressure, Lateral Rotation & Bariatric Air Therapy Pumps for Pressure Injury Prevention
Alto Med Supply offers a range of advanced Span America PressureGuard control units designed to power therapeutic mattress systems and support effective pressure injury prevention and treatment.

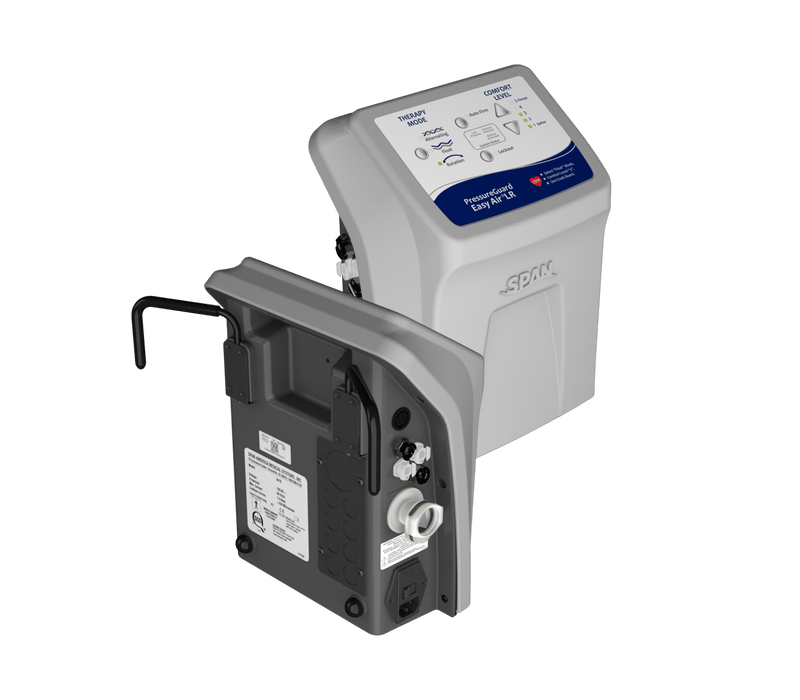

The PressureGuard 8010 Easy Air Control Unit delivers reliable Low Air Loss (LAL) and Alternating Pressure (AP) therapy, helping manage skin moisture while promoting circulation.
Its user-friendly design includes a simple comfort dial and independent airflow control, allowing caregivers to fine-tune therapy settings without compromising microclimate management.
For enhanced clinical functionality, the PressureGuard 8120 Easy Air LR Control Unit combines high-flow Low Air Loss therapy with automated Lateral Rotation.
This feature assists with regular patient repositioning, helping reduce caregiver workload while supporting pulmonary health and minimizing the risk of pressure injuries.
It is an ideal solution for care environments that require consistent, hands-free patient turning.
The PressureGuard 8310 Control Unit is engineered specifically for bariatric air therapy surfaces, providing powerful low air loss support to maintain a healthy skin environment for higher-weight patients.
Designed with safety and convenience in mind, it includes a 30-minute Auto Firm mode for secure patient transfers and a lockout function to prevent unintended setting changes.
Its lightweight, energy-efficient design operates quietly, helping create a more comfortable and restful care setting.
At Alto Med Supply, we provide these high-performance pressure redistribution control units to help healthcare providers deliver dependable, patient-focused care across a variety of clinical needs.
Key Features
-
Low Air Loss (LAL) Therapy: Helps manage moisture and heat at the skin surface to support pressure injury prevention.
-
Adjustable Comfort Control: Easy-to-use dial or digital settings allow personalized weight and comfort adjustments.
-
Automated Lateral Rotation: Assists with patient turning to improve pulmonary function and reduce caregiver workload.
-
Independent Airflow Management: On/off airflow control maintains microclimate balance without affecting therapy modes.
-
Auto Firm Mode: Provides a temporary firm surface for safer patient transfers and daily care activities.
-
Power Outage Protection: Maintains mattress inflation during power loss or transport for continuous support.
-
Safety Lockout Function: Prevents accidental or unauthorized changes to therapy settings.
-
Quiet, Energy-Efficient Operation: Low power consumption and minimal noise improve patient comfort.
-
User-Friendly Controls & Alerts: Simple interface with visual and audible alarms for easy monitoring and safety.
Specifications
| Model Details |
8010 |
8210 |
8310 |
| Compatibility |
PressureGuard Standard
Easy Air Mattress System |
PressureGuard Easy Air
LR Mattress System |
PressureGuard Easy Air
XL Mattress Series |
| Dimensions |
12” L x 15” W x 7” H |
12” L x 15” W x 7” H |
12” L x 9.5” W x 7” H |
| Weight |
15 lbs |
15 lbs |
6 lbs |
| Therapy Type / Modes |
Low Air Loss,
Alternating Pressure |
Lateral Rotation,
Low Air Loss,
Alternating Pressure |
Low Air Loss |
| Weight Capacity |
Up to 500 lbs |
Up to 1000 lbs |
Up to 1000 lbs |
| Power / Voltage |
<15W; 120V AC / 60Hz |
120V AC / 60Hz; energy-efficient |
120V AC / 60Hz |
| Indicators & Alarms |
Normal/Low pressure
lights, audible alarms |
Visual and audible alarms
for low pressure or power failure |
Normal/Low Pressure indicator |
Product Manual
User manual for Span America PressureGuard Easy Air Control Units can be found here.
