TR Equipment | TR 3200 Bariatric Battery-Operated Standard Shower Trolley | Height Adjustable Trolley for Safe and Ergonomic Patient Hygiene Care
The TR Equipment Bariatric Battery-Operated Standard Shower Trolley TR 3200, available at Alto Med Supply, is a high-capacity, ergonomically designed hygiene solution built for safe patient handling in hospitals, long-term care facilities, and other healthcare environments.
With a maximum patient weight capacity of 230 kg (500 lbs), this versatile shower trolley supports bariatric care while ensuring comfort and safety for both patients and caregivers.
Engineered with dual side-mounted columns, the TR 3200 allows the stretcher to overlap the shower bed for smooth and secure transfers.
Its dual-end drainage system enables flexible patient positioning in either direction, enhancing convenience for caregivers.
The trolley offers two power configurations: Onboard High-Capacity Rechargeable Batteries or Removable Battery packs.

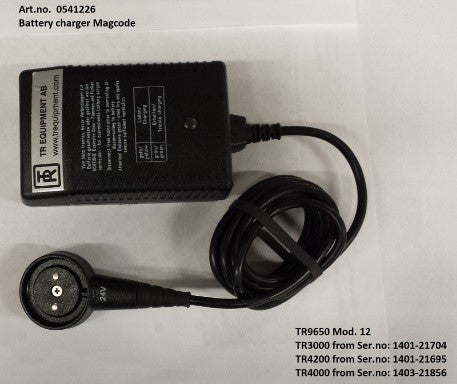

Both options include a user-friendly MagCode magnetic charger for quick and safe connection, with indicators to show charging status.
Caregivers benefit from smooth, height-adjustable operation (500–900 mm) and easy tilt control for Trendelenburg positioning, aiding in shock relief and fluid drainage.

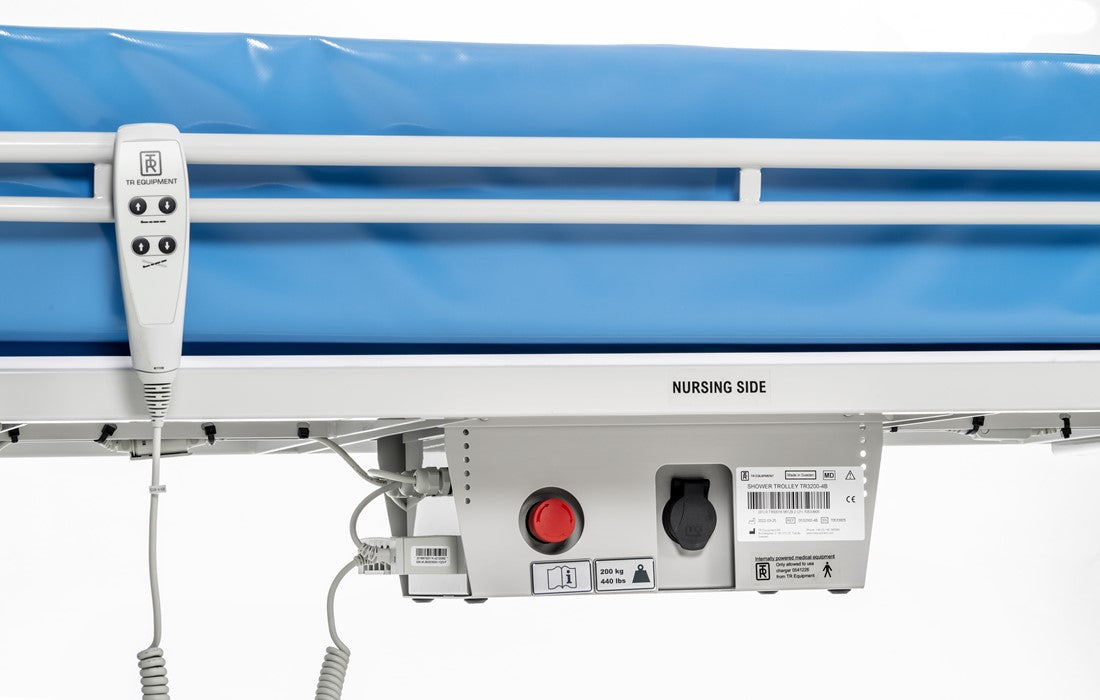

The TR 3200 also features a low battery audible alert, and an emergency stop button for added safety.
Built with durable, powder-coated stainless steel, it includes flame-retardant PVC mattress and pillow in a wipe-clean blue finish, easily removable for hygiene and maintenance.

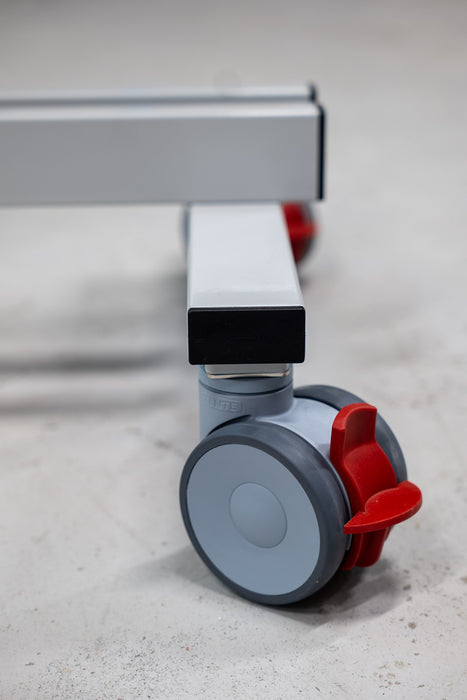

Mobility and maneuverability are supported by four 100 mm braked twin castors and bumper protection on all corners to prevent damage to surroundings.
Foldable side rails make patient transfer safer and allow the unit to pass through narrow spaces with ease.

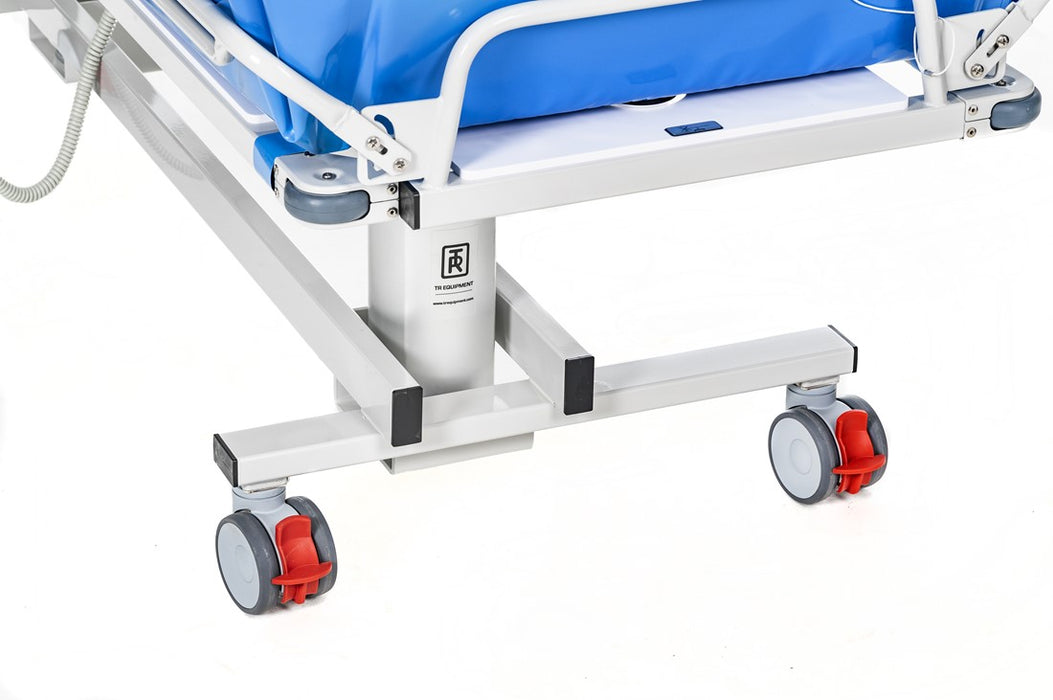

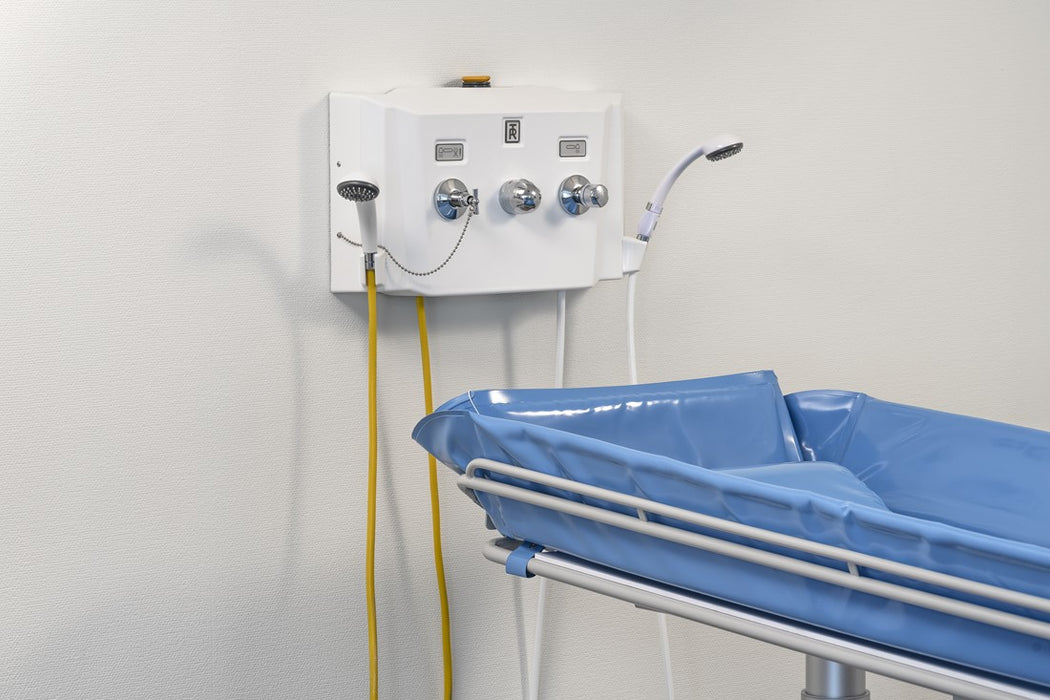

Additional features include 160 mm floor clearance for compatibility with floor lifts, a clean design for easy disinfection, and optional use with the TR 2810 Shower Panel to create a complete showering system.
Whether you’re upgrading your care facility or outfitting a new space, the TR Equipment TR 3200 Standard Shower Trolley from Alto Med Supply delivers advanced functionality, safety, and convenience designed with both bariatric patients and healthcare professionals in mind.
Key Features
-
High Weight Capacity: Supports bariatric patients up to 500 lbs.
-
Battery Operated: Comes with onboard rechargeable or removable battery options.
-
Height Adjustable: Smooth electric adjustment from 19.7" to 35.4" for ergonomic caregiver use.
-
Side-Mounted Columns: Allows the stretcher to overlap the shower bed for safer patient transfers.
-

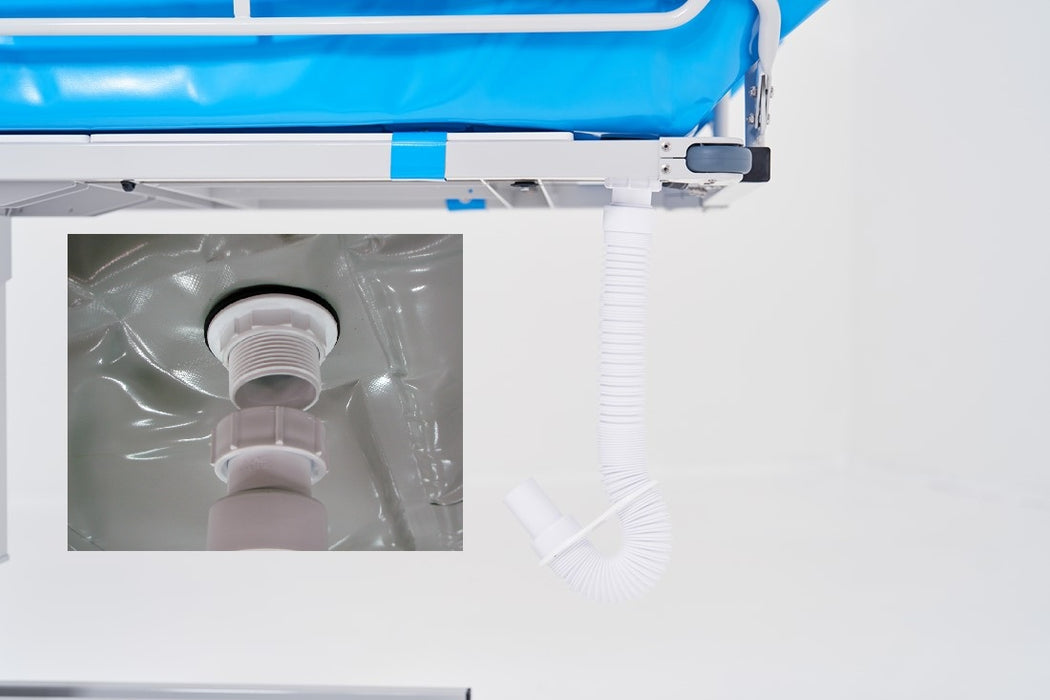

Dual-End Drainage: Enables patient positioning in either direction for caregiver convenience.
-

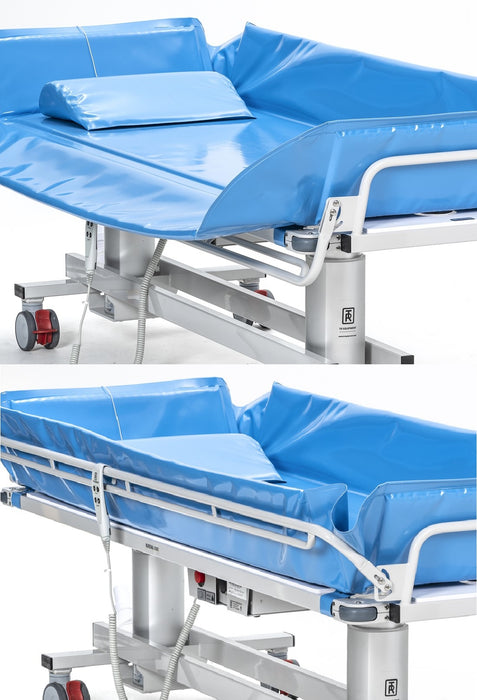

Foldable Side Rails: Easy-to-use rails for safe patient transport and access through narrow doorways.
-

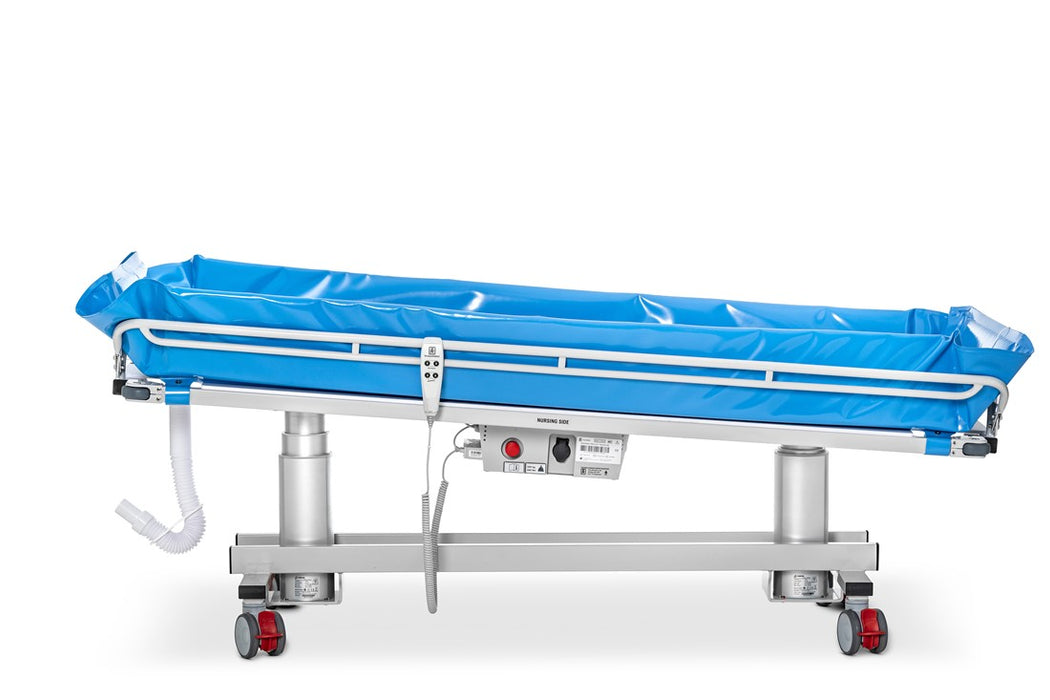

Tilt Function: Hand control tilt (+/-4°) supports Trendelenburg position and better drainage.
-

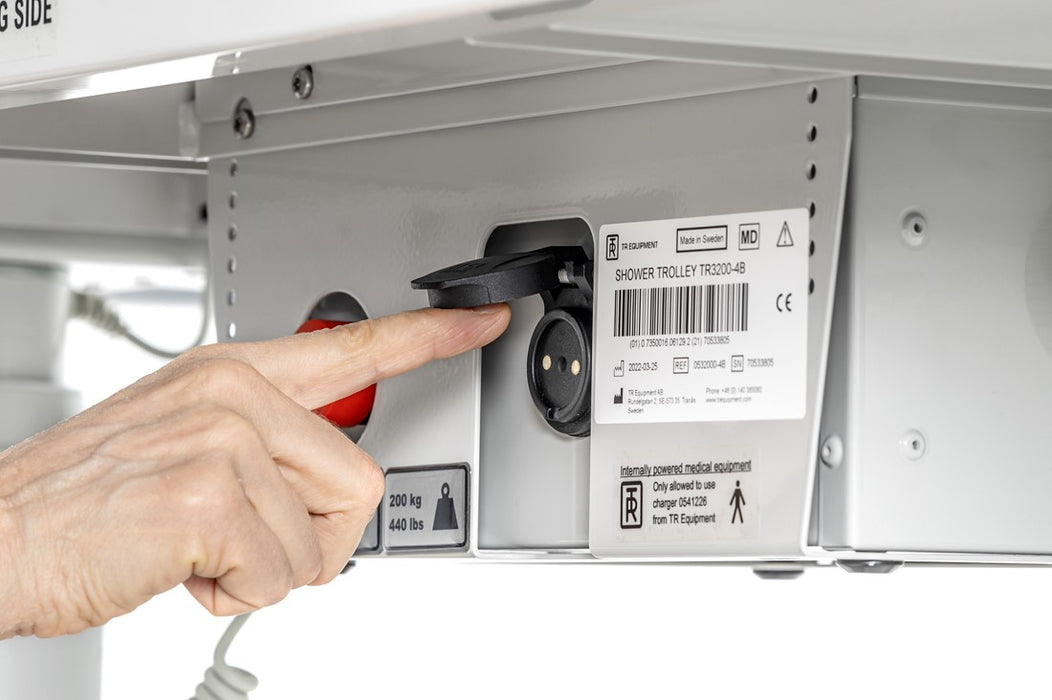

MagCode Charger: Magnetic charging connector with indicator lights for safe and easy daily charging.
-
Emergency Stop Button: Instantly cuts power to lifting column for added safety during use.
-
Durable Construction: Made with powder-coated stainless steel for long-lasting performance.
-

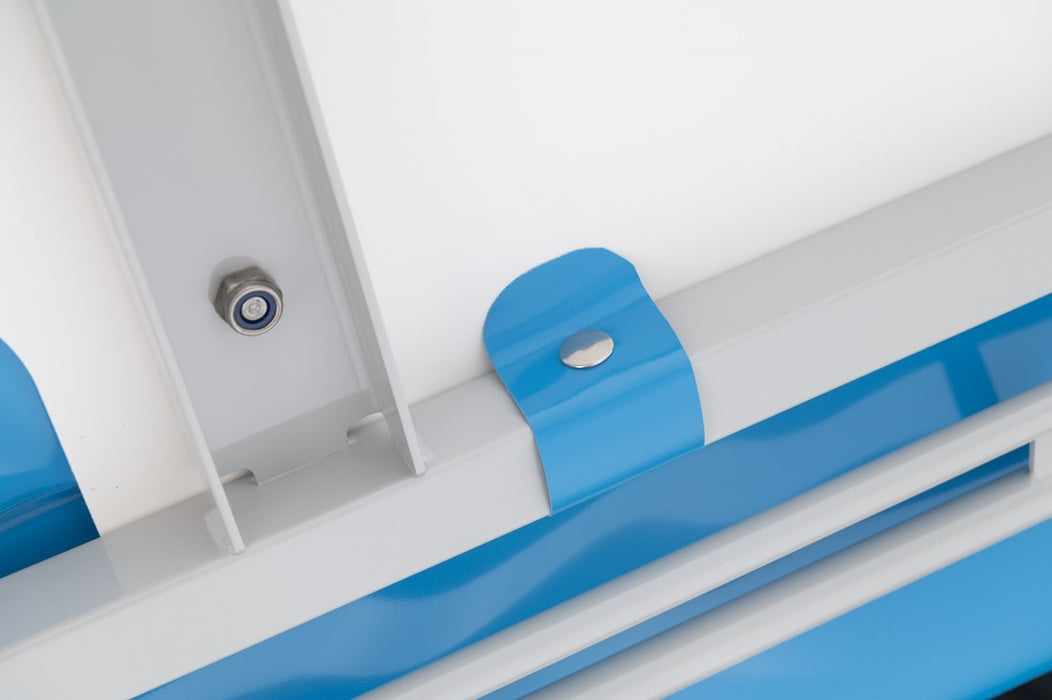

Removable Mattress and Pillow: Flame-retardant PVC materials designed for comfort and easy cleaning.
-

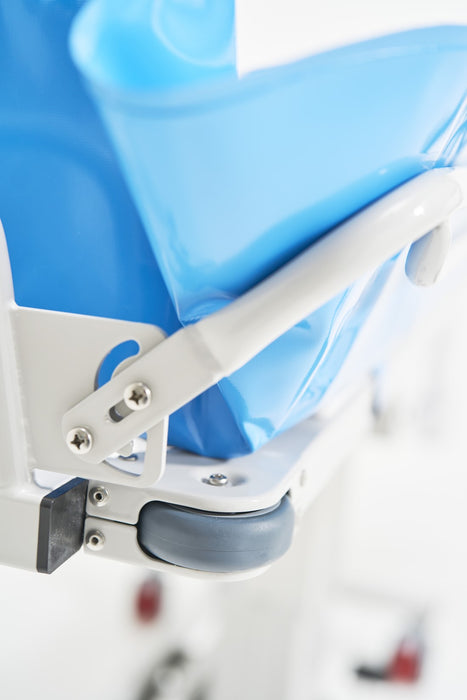

Mobility and Protection: Equipped with 3.9" braked twin castors and corner bumpers to protect surroundings.
-
Floor Lift Compatible: 6.3" ground clearance allows use with standard floor lifts.
-
Ready to Use: Delivered with charger, mattress, pillow, drainage hose, and 4 locking wheels included.
-
Compatible with TR 2810 Shower Panel: Can be used as part of a complete showering system for patient care.
Specifications
| Specifications |
Values |
| Length: |
76.8" |
| Width: |
27.4" |
| Height: |
Min. 19.7", Max. 35.4" |
| Max Patient Weight: |
230 kg (500 lbs.) |
| Chassis/Frames: |
Powder coated stainless steel |
| Castors: |
3.9" twin castors |
| Control: |
Hand control for height and tilt adjustment |
| Mattress, Pillow: |
Blue, flame retardant material |
| Battery: |
On board: rechargeable, 24V, 7Ah, buzzer. Removable and rechargeable: 1 x 24V, 5Ah |
| Protection Class (Electronics): |
IPX5 |
| Tilt: |
Via hand control, +/- 4° |
Product Manual
User manual for TR Equipment TR 3200 Bariatric Battery-Operated Standard Shower Trolley can be found here.
Service and Maintenance Included Spare Part List can be found here.
Shipping
- Free delivery (Contiguous United States Only)
- Delivery ETA 3-7 business days
- We also offer white glove engineer delivery with assembly and demonstration if required. Please contact us for a quote.
- If you require faster shipping or shipping anywhere other than the contiguous United States, please contact us for a shipping quote.
Warranty
This product comes with the below manufacturer's parts warranty:
- Metal frame/structure: 3 Years
- Seat pads: 2 Years
- Mattress/Pillows: 1 Year
- Electronics/PCB: 1 Year
- Actuators/Motors: 1 Year
- Pumps: 1 Year
- Hoses/Mixing valves: 1 Year
- Batteries: 120 Days
- Hand controls: 120 Days
- Battery chargers: 120 Days
- Fuses: 120 Days
- Castors: 90 Days
- Plastic covers: 90 Days
- Safety belts: 90 Days
