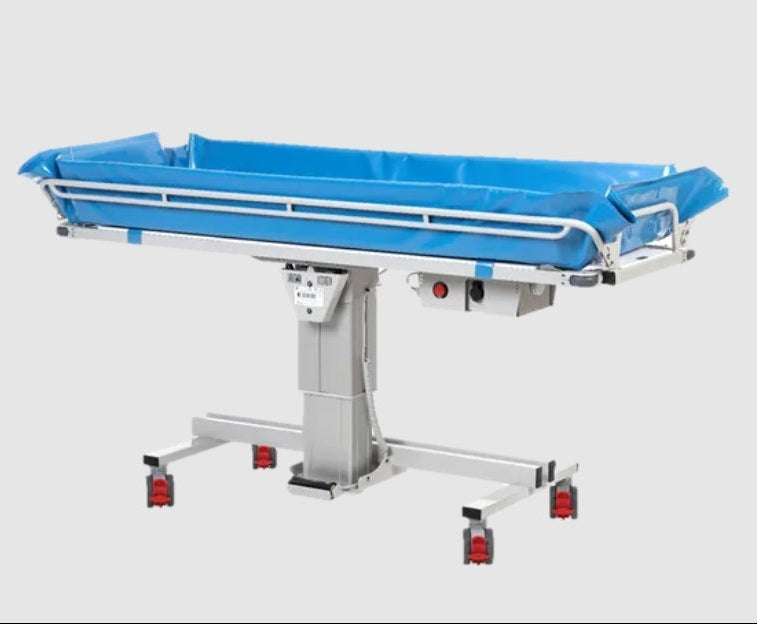

TR Equipment | TR3000 Battery Operated Standard Shower Bed | Safe, Height Adjustable Trolley for Patient Transfers
The TR Equipment TR3000 Battery Operated Standard Shower Bed, available at Alto Med Supply, is a versatile and ergonomically designed shower trolley built for safe and efficient patient care.
With a weight capacity of up to 440 lbs., this electric shower bed is ideal for hospitals, long-term care facilities, and other clinical settings.
Its unique side-mounted column allows the stretcher to overlap the bed further than standard models, making patient transfers safer and more comfortable for both the caregiver and the individual.
The TR3000 features dual drainage outlets at both ends of the stretcher, allowing the patient to be positioned in either direction offering greater flexibility in use.
The height-adjustable frame, controlled by a foot pedal, enables smooth and hands-free operation, promoting proper ergonomic posture for caregivers.
The frame also tilts in both directions (±4°), including the Trendelenburg position, which supports patients experiencing shock or requiring easier drainage.
This durable shower trolley includes a high-quality, flame-retardant PVC mattress and matching head pillow, both designed for long-lasting use and easy removal for cleaning.
Foldable side rails on both the bed and caregiver sides enhance safety during transfers and can be adjusted to navigate narrow doorways.
The low 160 mm floor clearance allows compatibility with floor lifts, while four braked twin castors and bumper wheels ensure stability and protection during transport.
The TR3000 comes equipped with a high-capacity rechargeable battery system (24 V, 14 Ah) and a user-friendly MagCode magnetic charger.
An audible tone alerts caregivers when charging is needed, and the charger’s indicator light clearly signals charging status yellow while charging, green when complete.
The battery system is available as either onboard or with removable battery packs to fit a variety of facility needs.
Constructed with powder-coated stainless steel for long-term durability and low maintenance, the TR Equipment TR3000 is IPX5-rated for water resistance and easy cleaning.
For a complete shower system, it pairs seamlessly with the optional TR 2810 Shower Panel (sold separately).
Alto Med Supply proudly offers the TR Equipment TR3000 Shower Trolley as part of our commitment to providing high-quality, safe, and efficient patient care solutions.
Key Features
-
Battery Operated Design: Easy, cordless operation with high-capacity rechargeable batteries (24V, 14Ah).
-
Safe Patient Transfers: Side-mounted column allows stretcher to overlap the bed for safer and easier transfers.
-
Dual Drainage Outlets: Drainage at both ends enables flexible patient positioning in either direction.
-
Height Adjustable Frame: Smooth, foot-operated height control from 600 mm to 900 mm for ergonomic use.
-
Tilting Function: ±4° tilt in both directions, including Trendelenburg position for emergency care or drainage.
-
Foldable Side Rails: Flexible side rails fold down for easy access and lock in place for safe transport.
-
Durable Construction: Powder-coated stainless steel chassis ensures long-term durability and low maintenance.
-
IPX5 Water Resistance: Built to withstand water exposure, ideal for wet environments and shower use.
-
Comfortable Mattress and Pillow: High-quality, flame-retardant PVC materials for patient comfort and hygiene.
-
Easy Mobility: Four 4" braked twin castors and bumper wheels for smooth movement and wall protection.
-
Low Floor Clearance: 6.3" clearance compatible with most floor lifts for convenient transfers.
-
MagCode Charging System: Magnetic connector prevents damage and includes clear charge status indicator.
-
Low Battery Alert: Audible tone notifies caregivers when charging is needed.
-
Ready to Use: Includes mattress, head pillow, flexible 1 m drainage hose, and charger out of the box.
-
Optional Compatibility: Designed to work seamlessly with the TR 2810 Shower Panel for a complete system.
Specifications
| Length |
63" |
| Width |
25.2" |
| Height |
Min. 23.6", Max. 35.4" |
| Max Patient Weight |
440 lbs. |
| Chassis/Frames |
Powder coated stainless steel |
| Floor Clearance |
6.3" (height of the base allows mobile sling lift transfers) |
| Casters |
4 Braked twin castors, 4" as standard (Straight Steering castors available as an option) |
| Control |
Foot operated control for height. (Hand control available as option) |
| Mattress, Pillow |
Blue, both in flame retardant material, Mattress with Dual drainage |
| Tilt |
Manual tilt adjustment on both sides, +/- 4 degrees |
| Battery |
On board 24 V, 7 Ah. / Removable LION 24 V, 5 Ah. Buzzer for low battery |
| Protection Class Electronics |
Complete unit IPX5 (Handcontrol and removable batteries IPX6) |
Product Manual
User manual for TR Equipment TR3000 Battery Operated Standard Shower Bed can be found here.
